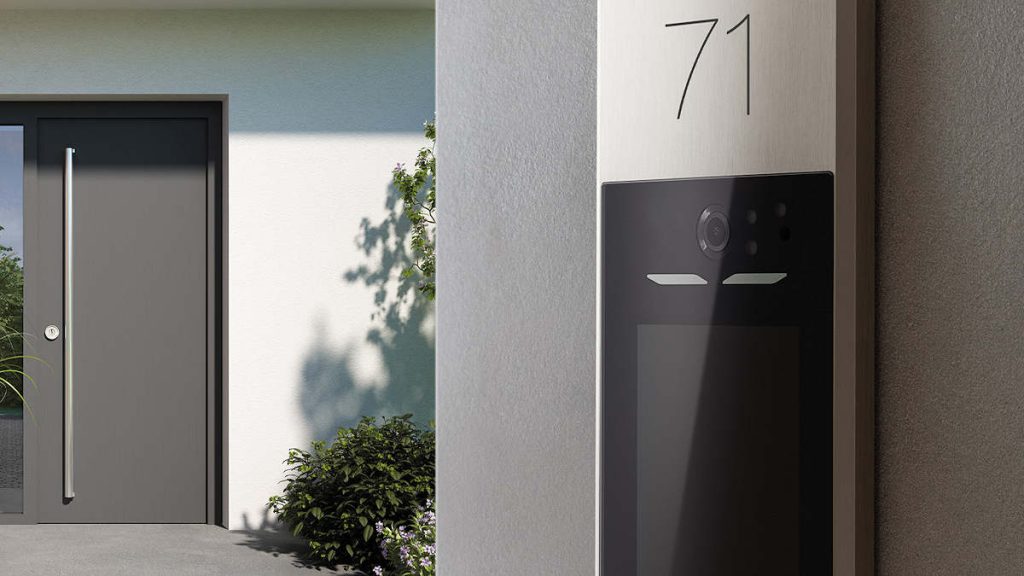

BTicino Linea 5000 with Netatmo Smart Entrance Panel.
BTicino Linea 5000 with Netatmo – BTicino’s Linea 5000 with Netatmo is a smart 2-wire IP entrance panel designed for multi-dwelling residential buildings.
Featuring a 7-inch vertical touchscreen and a 5MP wide-angle camera, the device is suited to both new installations and upgrades of existing 2-wire systems. It supports flush or wall mounting and integrates with BTicino Classe 100 and Classe 300EOS indoor units, as well as power supplies and system accessories.
The Linea 5000 camera offers 5MP resolution with a wide horizontal field of view of 119 degrees and vertical coverage of 92 degrees. Digital filters enhance image quality, and video is transmitted to internal units using PAL encoding via BTicino’s 2-wire SCS BUS technology.
Audio is supported by a built-in omnidirectional microphone and speaker, with echo cancellation and noise suppression improving communication clarity. The touchscreen features a durable IK08-rated shatterproof glass surface with a proximity sensor for automatic activation. A twilight sensor enables IR night vision for visibility in low-light conditions.
Multiple access modes are supported. Residents can unlock doors using a numeric code, RFID keycard, or their smartphone via Bluetooth and the Home + Security app. Up to 5 scheduled access codes can be preset and call modes include address book selection, code-based entry, or full hierarchical navigation using block, riser, floor and apartment information. The system also enables temporary access codes, direct calls to a concierge station (if present), and custom welcome messages or homepage branding.
Configuration and updates can be completed locally via Bluetooth or remotely using Ethernet or Wi-Fi connections. The Home + Project app allows installers to manage configuration from a desktop or mobile device. System changes, including address book edits and resident details, can be completed on site or off site. The unit allows direct activation of an electrical door lock, with local door release wiring supported. Installation options include flush mounting using a 3-module box or surface mounting with dedicated accessories.
The Linea 5000 system also supports accessory modules including an RFID smart access module, a keypad module for code-based door release, and an inductive loop module for hearing-aid compatibility. These modules include relay outputs, pushbutton inputs, LED indicators, and support for the same app-based configuration as the main unit. They can be installed individually or in combination using standard mounting frames.
You can contact a local BTicino distributor in Australia here, in NZ here or read more SEN news here.
BTicino Linea 5000 with Netatmo Features
- 2-wire SCS BUS installation
- 5MP wide-angle camera with IR and twilight sensor
- 7-inch touchscreen interface with echo-cancelled audio
- Multiple access and call modes
- App-based setup, configuration, and updates
- IP65 weatherproofing and IK08 impact rating
- Compatible with optional keypad, RFID, and inductive loop modules
