GJD D-TECT Laser Security Sensor With Up to 25 Metres Range.

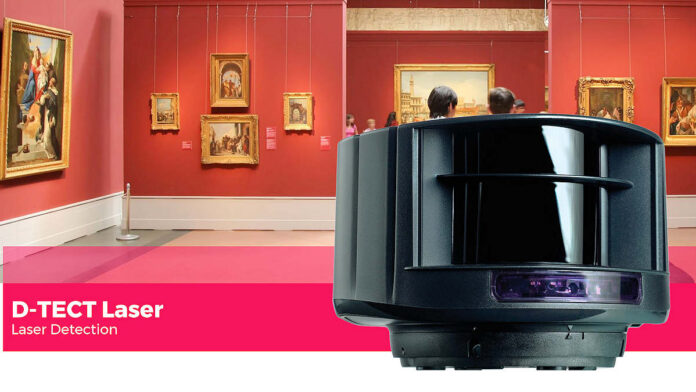

GJD D-TECT Laser Security Sensor – D-TECT Laser by GJD is a precision laser-based security device designed for creating virtual detection zones or surveillance curtains.
The sensor delivers reliable intrusion detection programmable to an accuracy of 10cm and uses time-of-flight laser scanning technology, capable of detecting both movement and presence.
D-TECT Laser can monitor pedestrian and vehicle entry points, protect perimeters, safeguard valuable artworks, and prevent theft, vandalism, or unauthorized access to open sites.
Installation of the D-TECT Laser is undertaken using 3 visible red alignment laser beams to simplify detection surface alignment and bracket angle adjustments. A self-learning teach-in function automatically calibrates to environmental backgrounds. Adjustable parameters can be configured using a remote control.
The unit includes adaptive sensing curtains, providing both alarm and pre-alarm warnings. It maintains high immunity to environmental interference, with the capability to detect or ignore objects based on a remission factor as low as 2 per cent. The discreet housing is available in black or white and meets IP65 standards for both indoor and outdoor installations.
The D-TECT Laser has an operating temperature range of -30 to 60C, offers a maximum detection range of up to 25m x 25m (model dependent), and has an angular resolution of 0.3516 degrees.
The sensor’s IR wavelength is 905 nm, Class 1, pulse power 75W, while the visible red laser has a wavelength of 650nm, is Class 3R, and draws continuous wave power of 3mW. The sensor has a peak draw at power up of 2.625A.
Accessories include the GJD501 Laser Programmer for easy parameter adjustments, the GJD511 Laser Bracket for wall or post installations, and the GJD513 Laser Spot Finder, enabling precise curtain positioning.
You can find out more about GJD D-TECT laser security sensor from NetDigital Security here and read more SEN news here.
GJD D-TECT Laser Security Sensor Features:
- Programmable virtual curtains with 10cm accuracy
- 3 visible alignment lasers
- Adaptive sensing curtains
- High environmental interference immunity
- Remote parameter adjustment
- IP65 rated, available in black or white.
