Hikvision DS-KIS603-P Gen2 IP Video Intercom Kit With Wi-Fi and Mobile Viewing.

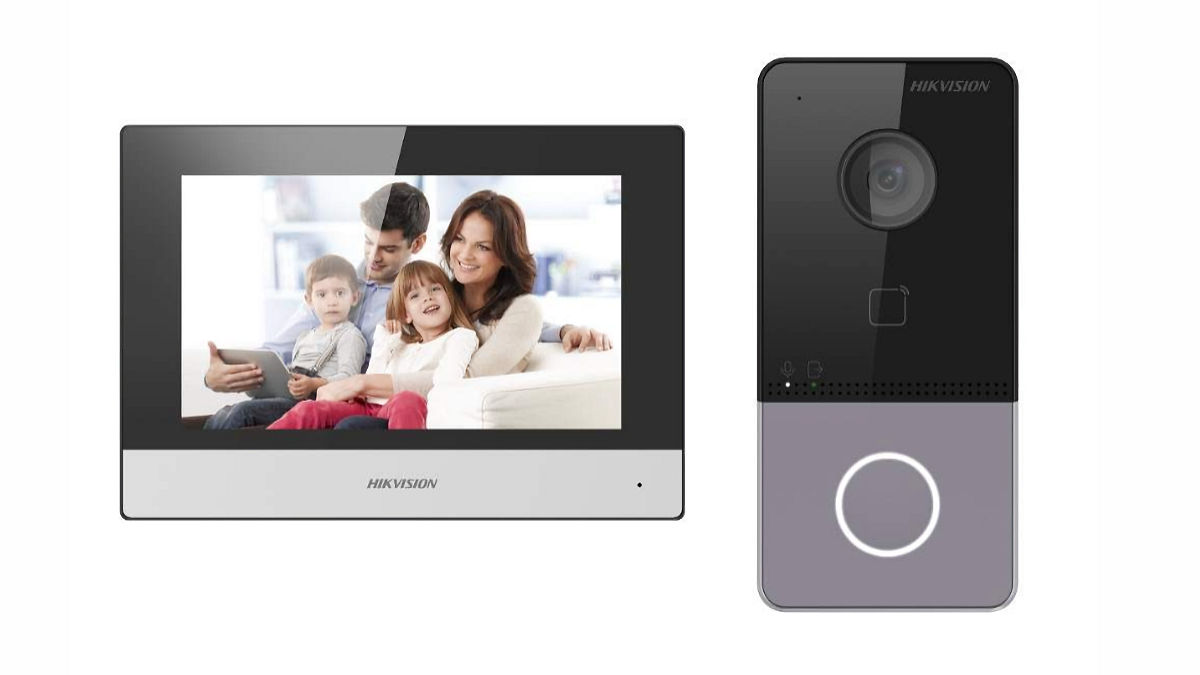

Hikvision DS-KIS603-P Gen2 IP Video Intercom – Designed for villas, townhouses, and standalone homes, the Hikvision DS-KIS603-P Gen2 IP video intercom kit includes a DS-KV6113-WPE1 outdoor door station and a DS-KH6320-WTE1 indoor room station each with its own power supply.
These units support Wi-Fi and PoE for flexible installation and users can communicate via 2-way audio, verify visitors with live video, and unlock doors remotely using the Hik-Connect mobile app or the 7-inch indoor touchscreen.
DS-KV6113-WPE1 delivers 2MP HD video with a 129-degree horizontal and 75-degree vertical field of view. Night performance is supported with low-illumination IR capability up to 3 metres. Image enhancements include WDR and digital noise reduction. The camera streams at 1080p@30fps with H.264 compression and supports dual stream encoding. A single-button interface and MIFARE 13.56 MHz card reader are integrated into the unit.
Weather protection is IP65 and there’s an operating temperature range from –40C to 60C. The door station includes 4 alarm inputs, 1 relay output, RS-485, and tamper protection. Audio is provided by a built-in omnidirectional microphone and speaker with echo cancellation and noise suppression. Power options include 12 VDC or IEEE 802.3af PoE, with consumption below 10W. Physical dimensions are 138 x 65 x 27mm.
Meanwhile, the DS-KH6320-WTE1 indoor station features a 7-inch capacitive TFT touchscreen with 1024 x 600 resolution. It includes a microphone, speaker, 8 alarm inputs, 2 relay outputs, RS-485, RJ-45 network interface, and a TF card slot supporting up to 32GB. The unit communicates using TCP/IP, SIP, and RTSP protocols and connects via wired or 802.11 b/g/n Wi-Fi networks.
Power is supplied via 12 VDC or PoE, with consumption up to 6W with operating temperature ranges from –10C to 55C, physical dimensions being 200 x 140 x 15.1mm, while weight is 1.6kg.
More details about this Hikvision DS-KIS603-P Gen2 IP Video Intercom Kit here and you can read more SEN news here.
Hikvision DS-KIS603-P Gen2 IP Video Intercom Features
- 2MP HD outdoor camera with WDR, IR night vision and wide-angle coverage
- IP65-rated construction with PoE, Wi-Fi, MIFARE card reader, and tamper switch
- 7-inch touchscreen indoor station with alarm inputs, relay outputs, and TF card slot
- 2-way audio with echo cancellation and noise suppression
- Remote unlock and mobile viewing via Hik-Connect app
- Dual stream support (main: 1080p, sub: D1) for efficient bandwidth management
- Wall-mount (indoor) and surface-mount (outdoor) design
- Pre-packaged kit suitable for secure residential access control.
