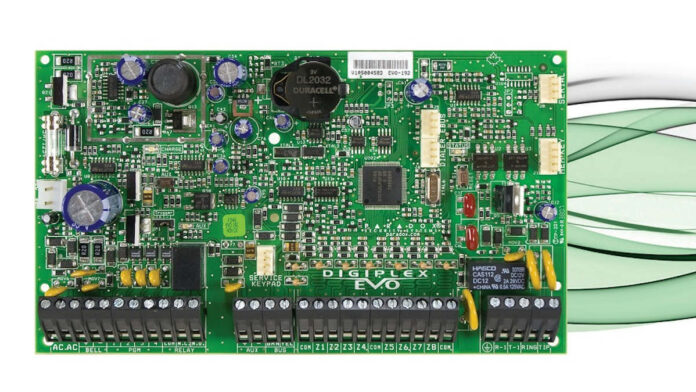

Paradox Digiplex EVO192 Supports 192 Alarm Inputs And 32 Doors Of Access Control.
Paradox Digiplex EVO192 – Available now from BGW Technologies, Digiplex EVO192 is a capable high security alarm and access control solution supporting 192 alarm inputs and 32 doors of access control.
EVO192 is a modular system providing installers with labour-saving features that make installation, expansion and maintenance faster. Techs can expand a client’s system by adding expansion modules anywhere, in any combination, on a 4-wire combus.
Modules are connected to the combus at the most convenient location and zone inputs are simply assigned to the desired zone and partition. Meanwhile, key switches, remote controls, and unused module inputs don’t use zones.
Once installed, all combus modules (including motion detectors) can be programmed remotely via a keypad, or on a laptop using BabyWare PC software.
Along with alarms, EVO integrates access control functionality. A system’s alarm system user database can be used to manage the access for up to 32 doors, and the monitoring of these doors can be included in any partition.
You can learn more about the Paradox Digiplex EVO192 from the BGW Technologies’ team here or read more SEN news here.
Paradox Digiplex EVO192 Features
- 8 on-board zones (16 w/ zone doubling)
- Built-in access control features
- Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
- In-field firmware upgrade via 307USB, Babyware and WinLoad
- Selectable input resistors for EOL and Tamper
- Compatible with NEware V4.0 or higher
- Automatic Daylight Savings Time feature
- PGM1 can be used as a 2-wire smoke input
- Program remote controls using the master or installer codes
- Built-in real-time clock backup battery
- 1.7A switching power supply
- 1 supervised bell output, auxiliary output and telephone line
- Patented 2 opto coupler dialler circuit
- Push button software reset (reset to default values and restart)
- Push button to activate or deactivate the Auxiliary output
- Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
- EN 50131 grade 3.
“Paradox Digiplex EVO192 Supports 192 Alarm Inputs And 32 Doors Of Access Control.”
Seems strange to be promoting a product that is obsoleted, in this case by the EVOHD+ which noone is bringing to the AU market at this stage.
With recent changes with the MQTT migration, you can’t even use a IP and PCS module together with the EVO anymore thanks to only having a single serial port.
I use the EVO192 on a few sites, but wouldn’t recommend for any form of secure access control.
