Acre SPC53 Intrusion And Access Control Panel Supports 16 doors And Up to 128 Zones.

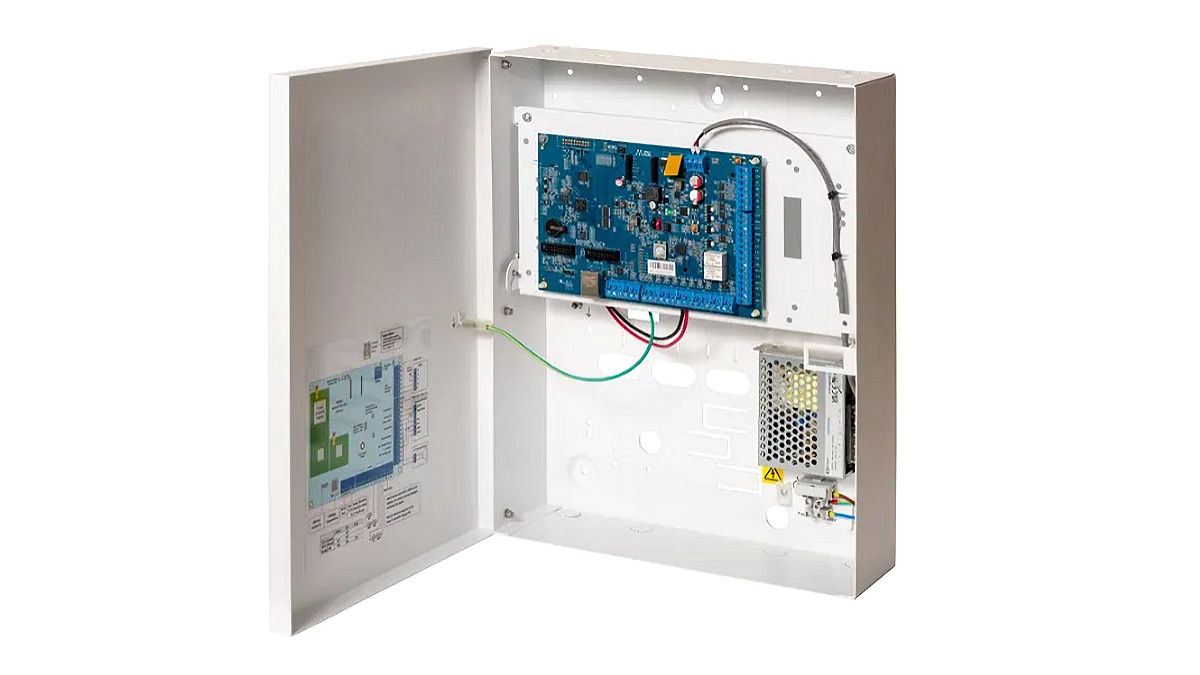

Acre SPC53 Intrusion And Access Control Panel – Acre Security’s SPC53 control panel combines intrusion detection and access control in a single controller for commercial and multi-area applications.
The panel supports up to 128 zones, including 8 on-board, and 128 outputs, with 6 onboard. It manages 16 doors, 16 system keypads and 32 verification zones across 16 areas, with capacity for 500 users and differentiated access levels.
The SPC53 stores up to 10000 intrusion events and 10,000 access events, providing integrated reporting and audit capability. An on-board Ethernet interface and integrated web server support direct browser access, while 2 terminals allow pluggable PSTN and GSM/GPRS communication modules. The platform supports IP-based EN50136 communications as well as traditional analogue signalling.
The SPCevo range includes the SPCevo43, SPCevo53 and SPCevo63, all sharing a common architecture and configuration environment. Systems can be configured locally via keypad, Windows-based software or through the embedded web server. Acre Intrusion Connect enables remote configuration and user management, reducing the need for on-site visits and supporting ongoing maintenance and system changes.
Commercial functionality includes intelligent handling of common areas and extended system monitoring features suited to shared facilities. Cause and effect logic allows triggers such as zones, areas, user credentials and schedules to be combined to activate defined responses, supporting tailored operational workflows. User management allows time, day and area-based access restrictions, with support for a range of compatible access readers.
The platform is supported by a suite of accessories including keypads, I/O expanders, 2-door controllers, smart power supplies, indication expanders, and PSTN and GSM communication modules. The modular approach allows system expansion while maintaining a single management environment.
Acre Intrusion Connect software is available in free and paid versions for security companies, providing remote configuration, user management and service task completion, along with a free end-user app for system operation.
You can learn more about Acre security solutions here or contact local distributor Alarmcorp here – there’s more SEN news here.
Acre SPC53 Intrusion And Access Control Panel Features
- Integrated intrusion and access control in one panel
- 128 zones and 128 outputs, with on-board capacity
- 16 doors, 16 areas and 500 users
- 10000 intrusion and 10000 access event memory
- On-board Ethernet and integrated web server
- IP EN50136 and analogue communication support
- Pluggable PSTN and GSM/GPRS modules
- Cause and effect logic programming
- Remote configuration via Acre Intrusion Connect.
“Acre SPC53 Intrusion And Access Control Panel Supports 16 doors And Up to 128 Zones.”
