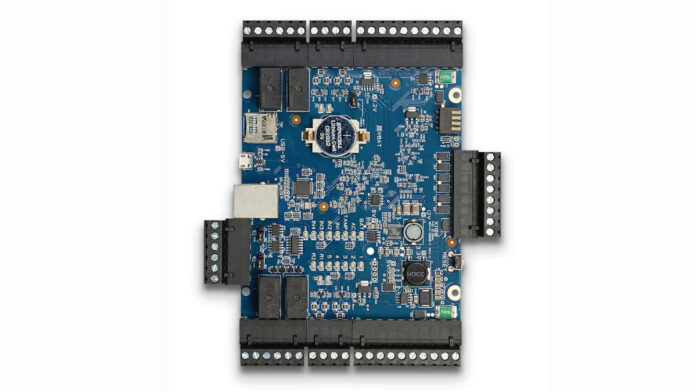

Alarm.com X1100 Door Controller From BGW Technologies.

Alarm.com X1100 Door Controller – Alarm.com’s X1100 door controller is a powerful, easy-to-use solution designed for commercial properties that seamlessly integrates with the Alarm.com for Business platform.

This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. Installation is plug-and-play and there’s scan-to-add card format and serial detection.

The X1100 allows control of doors and management of users, including scheduling and hardware configuration, via the Alarm.com app, or web browser.

The X1100 Door Controller supports 2 readers with 4 relay outputs and 4 programmable inputs. For larger installations, the X1100 controller can manage up to 64 doors by connecting up to 31 X100 2-reader expansion modules together.

Alarm.com’s X1100 controller features 12 to 24V DC input power (1.9A max draw), 2 dedicated reader inputs, support for 31 expansion modules and up to 64 readers, 4 relay outputs and 4 programmable inputs.

The interface is for use in low-voltage, Class 2 circuits only, communication is via shielded 2-wire RS-485 bus with 2-wire LED control and single-wire buzzer output. The controller is compact at 164mm wide x 140mm long x 26mm high and has a broad operating temperature of -55 to 85C.

You can learn more about the Alarm.com X1100 from BGW Technologies here or read more SEN news here.

“Alarm.com X1100 Door Controller From BGW Technologies.”
