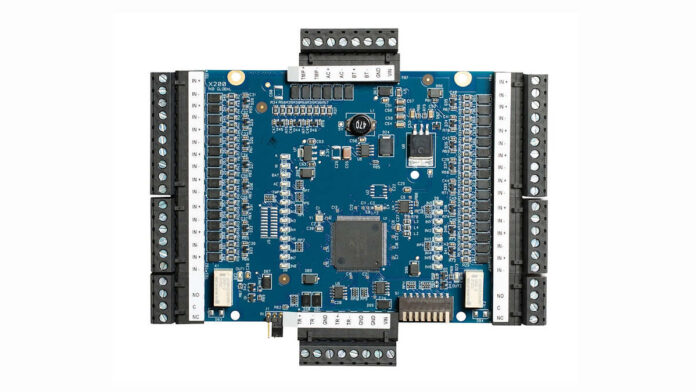

Alarm.com X200 Input Monitor Expansion Module From BGW Technologies.
Alarm.com X200 Input Monitor – Alarm.com’s X200 Input Monitor Expansion Module is designed for commercial properties that are using the X1100 door controller.
Seamlessly integrating with the Alarm.com for Business platform, the X200 enables intelligent automation and features, such as disarming when badging in, locking doors when arming and tagging access events on the video timeline.
The X200 Input Monitor Expansion Module also adds support for 16 additional general purpose supervised or unsupervised inputs and 2 additional relay outputs to an Alarm.com
X1100 Door Controller.
Other features include 3 dedicated inputs for tamper, AC fail, battery fail and connection of up to 16 expansion modules per expansion port, giving up to 31 expansion modules total.
Benefits include the ability to support scan-to-add card format and serial detection, control doors and manage users from the Alarm.com app, support integrated Alarm.com intrusion and
video offerings, deliver user-friendly, flexible scheduling and configure hardware using web or app for easy installation.
The unit has a 12-24V DC input voltage with a 300mA current draw, communicates via shielded 2-wire RS-485 and has 2 Form-C relay 2A outputs operating at 30V DC resistive. The module is 16.4 x 14 x 2.6mm in size and features an operating range of 0-70C.
You can learn more about the x200 Input Expansion Monitor and the Alarm.com solution from BGW Technologies here, or read more SEN news here.
