AMS DLLH-54 Operates Dual Locks From Single Lever On Narrow Door Jambs.

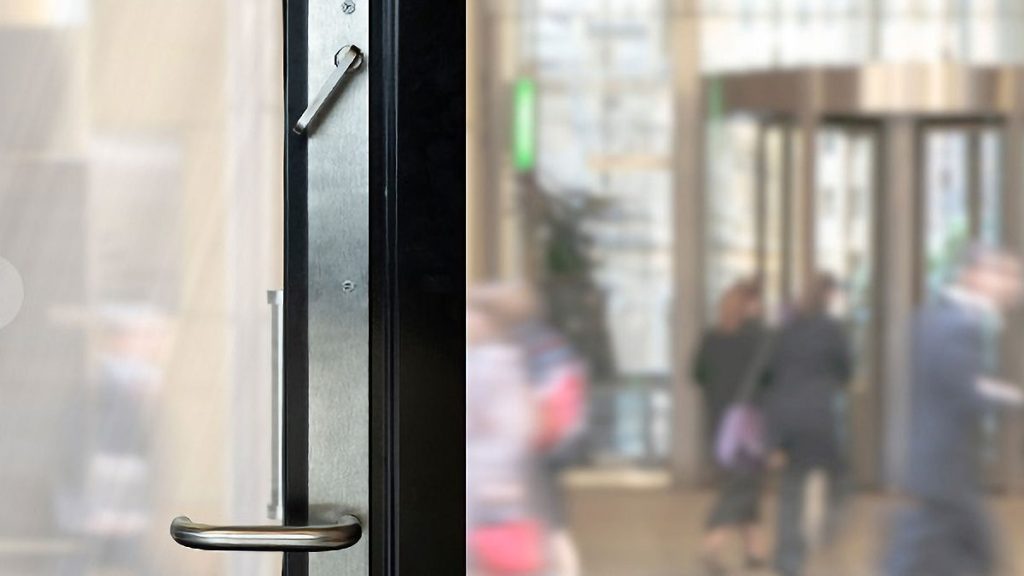

AMS DLLH-54 Operates Dual Locks – AMS Australia’s DLLH-54 Series dual lock lever handle is a narrow-style door hardware solution designed to operate 2 locks from a single lever action.
Developed in Australia, the DLLH-54 combines a latch and swing bolt arrangement and according to AMS, it’s the first lever lock and swing bolt combination designed to provide this functionality on narrow-style frames.
The system addresses an operational issue with dual-lock doors, which can otherwise require a 2-handed action to release both locks. With the DLLH-54, a single downward movement of the lever releases both locks simultaneously.
The DLLH-54 is designed for use with Lockwood locks and incorporates a heavy-duty lever return spring, adjustable external escutcheon and concealed external fixings. The internal and external handles are supplied as a pair.
AMS has also developed the DLLH-54 T version, which incorporates an internal turn snib. This allows the upper deadbolt to be activated from inside the door using the snib without affecting normal operation of the lever. A single downward movement of the handle continues to release both locks simultaneously.
AMS DLLH-54 series · at a glance
Two locks, one downward movement
Narrow-style dual lock lever handle, developed and manufactured in Australia.
2Locks released
1Lever movement
The DLLH-54 combines a latch and a swing bolt behind a single lever, so a door that would otherwise need a two-handed release opens on one downward action. A DLLH-54 T version adds an internal turn snib for the upper deadbolt.
390mmPlate length
45–50MM door thickness
LockwoodLock compatibility
PairHandles supplied
The system is intended for applications requiring dual locking and controlled single-action egress, including secure rooms, commercial offices, high-security buildings, critical infrastructure, airports, universities and schools, hospitals and major utilities.

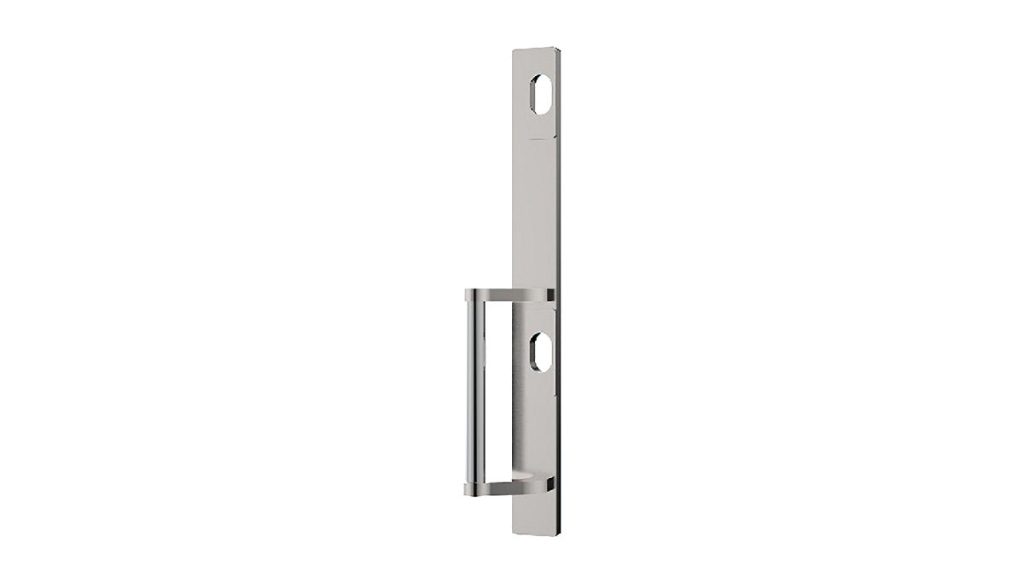

Standard DLLH-54 furniture measures 390mm long x 38mm wide x 12mm deep. Standard screws and spindles accommodate doors from 45-50mm thick, while extended screws and spindles can be supplied for other requirements. Finish options include a range of powder coat colours.
AMS Australia is an ACT-based Australian security hardware manufacturer – you can learn more here or read more SEN news here.
2Locks, one lever
Made in Australia by AMS
AMS Australia is an ACT-based security hardware manufacturer. Contact AMS for DLLH-54 and DLLH-54 T specification, finishes and extended hardware options.
AMS DLLH-54 Operates Dual Locks Feature
Specification
DLLH-54 at specification level
The published feature set, grouped.
Operation
Single lever operation of two locks simultaneously
Latch and swing bolt combination
Optional DLLH-54 T internal turn snib
Compatibility
Narrow-style frame compatibility
Designed for Lockwood locks
Standard hardware for 45–50mm door thickness
Extended screws and spindles available
Hardware
Adjustable external escutcheon
Heavy-duty lever return spring
Concealed external fixing
Internal and external handles supplied as a pair
Furniture and finish
390 x 38 x 12mm plate furniture
Powdercoat colour options
Australian designed and manufactured
Intended applications
Secure roomsCommercial officesHigh-security buildingsCritical infrastructureAirportsUniversities and schoolsHospitalsMajor utilities
FAQ
Common questions
AMS DLLH-54, answered
What problem does the DLLH-54 solve?
Dual-lock doors can otherwise require a two-handed action to release both locks. With the DLLH-54, a single downward movement of the lever releases both locks simultaneously.
Which locks is it designed to work with?
The DLLH-54 is designed for use with Lockwood locks on narrow-style frames, combining a latch and swing bolt arrangement.
What does the DLLH-54 T add?
The T version incorporates an internal turn snib, allowing the upper deadbolt to be activated from inside the door without affecting normal operation of the lever. A single downward movement of the handle continues to release both locks simultaneously.
What door thicknesses does it suit?
Standard screws and spindles accommodate doors from 45 to 50mm thick. Extended screws and spindles can be supplied for other requirements.
What size is the furniture, and what is included?
Standard DLLH-54 furniture measures 390mm long by 38mm wide by 12mm deep. Internal and external handles are supplied as a pair, with an adjustable external escutcheon, concealed external fixings and a heavy-duty lever return spring. Finish options include a range of powder coat colours.
Where is the DLLH-54 made?
The DLLH-54 was developed in Australia and is manufactured by AMS Australia, an ACT-based Australian security hardware manufacturer.
