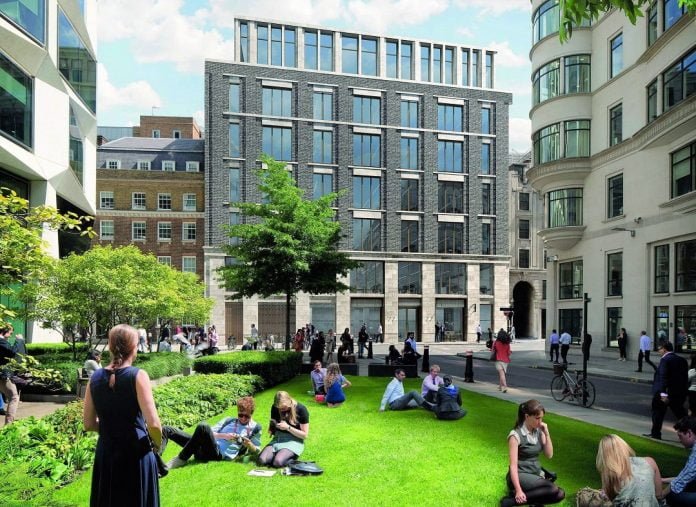

Kajima Properties’ development on Coleman Street in the City of London is a luxury multi-tenant office set over 7 floors. The redevelopment included installing elegant external facades as well as creating floors of new office space, and 16,000 square feet of retail, leisure and restaurant space.

Kajima Properties and managing agent, BNP Paribas wanted a seamless and highly efficient access control system supported by a security management system incorporating CCTV to keep people and the building safe.  Operational requirements included waiting times in reception to be kept to an absolute minimum to avoid crowding, good access for disabled users, and for all entry to be touchless. Tenants and reception staff would need an efficient, secure and easy to use system for managing visitors. An entry phone and remote door automation was required for out-of-hours arrivals, including deliveries or contractors.

Integrators Antron Security project managed the design, supply and installation of the access control and security system, while Inner Range provided the core access and security management system with its Integriti solution, which offers enterprise-level intelligent security and integrated smart building controls for single sites through to global enterprise solutions.

Operationally, the building’s 2000+ regular users are issued secure proximity cards, carrying encrypted information about when and where the user is allowed to go. Cards are presented to readers embedded in bespoke Integrated Design Limited (IDL) entry turnstiles, which also allows them to be read by the KONE lift integration.

For the turnstiles in the reception area, Antron Security and IDL worked closely with the vision set out by the architect to create a high-performing system that was in keeping with the sleek, minimalist design of the building. A bespoke set up of slim ‘speed lane’ turnstile pedestals, together with a separate glass gate were an ideal solution for a reception area where space is limited but security provisions and good disabled access are needed. IDL’s Glassgate 200 opens away from the user, and closes behind, preventing tailgaters and all IDL items are manufactured in the United Kingdom. Readers for proximity cards and QR codes were set into the speed lanes to create a seamless flow through the reception area.

The high-level lift integration with destination control means the lift software takes into account where each of the building’s four lifts are, where the user’s ‘home floor’ is, as well as where other users are going/due to go, and instantly calculates the quickest lift for the new user. The user is immediately directed to the most efficient lift via a display screen on the turnstile. If users are able to go to more than one floor, they can update their preference in the lift itself.

Inner Range’s Integriti also allowed Forge’s Bluepoint visitor management system to integrate with IDL’s turnstiles and the KONE lifts. For visitors to access tenanted floors within the building, the following has to take place:

* When the visitor arrives, they scan their QR code on their smart phone at the reception desk, at which point their QR code becomes valid on the Integriti access control system
* The visitor is then able to enter via IDL’s speed lane turnstiles, and they are directed by the KONE lift display (which is set into the speed lane) to which lift car they need* To leave, the visitor presents their QR code at the speed lane turnstile, which tells the system they’re leaving.

Kajima 1

The QR codes are only valid for one entry and one exit, and only on the appointment date and at the planned appointment time. Afterwards, the QR code becomes invalid and is deleted from the system. The QR code gives the visitor the ability to access everything they will need, from the entry turnstile and lift through to any locked doors en route.
The integration between Integriti and Forge’s Bluepoint visitor management system was achieved with an XML read/write interface, as well as API integration between a SQL database and a cloud-hosted VMS database based on Microsoft Azure cloud services platform.

A BTP XIP intercom system was installed to allow visitors out-of-hours to contact the security team, or for deliveries and trades people to use in order to access doors at the rear of the building. The XIP system uses an ethernet distribution network, which means the system can be expanded easily, and it’s possible to install long-distance connections that data networks can’t reach.

CCTV cameras from Hikvision were installed throughout the site to create a hard-wired IP closed circuit television system. They are integrated with the Integriti access control system, which allows for intelligent cause and effect monitoring. System protocols automatically bring up specific camera feeds for security managers to view in response to alerts, and footage can be viewed holistically along with other information on from Integriti, such as if a door has been left open.

Meanwhile, Inner Range’s provides seamless integration with a multitude of other smart building management systems, underpinned by robust security. This includes encrypting all communications through every device and interface, and providing intruder detection to European standard EN50131. Integriti helps building managers create greener, more energy efficient sites by tracking how tenants use the building, and amending heating and lighting settings as a result. Integriti also provides trace reporting, that can identify a user’s movements if they have become unwell and identify who else has been near them.

“The flexibility of Inner Range’s Integriti access control system and Forge’s Bluepoint visitor management allowed us to incorporate high-level lift integration, known as destination control,” said Jamie Crane of Antron Security.

“They create a future-proof solution as we can continue to meet the ever-changing requirements of the landlord and tenants via our ability to integrate with third party systems and devices such as lifts, intercoms, lighting and building management devices.”
