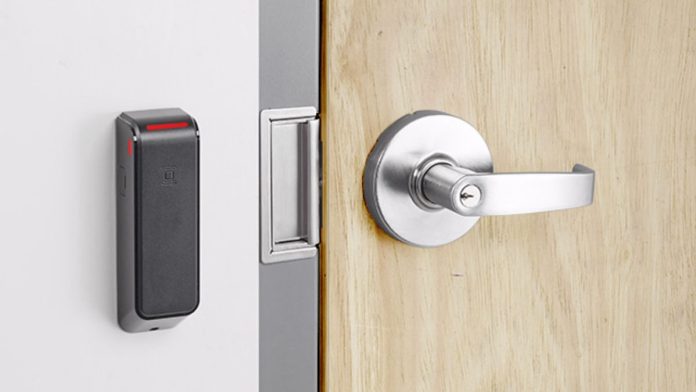

ASSA ABLOY ES100 Wireless Strike Lands In Australia.

ASSA ABLOY ES100 Wireless Strike – We’ve talked about the ES100 wireless strike from ASSA ABLOY before but at SecTech it was great to see this wireless access control solution is now available locally.

ASSA ABLOY’s ES100 Series wireless electric strike features 2.4GHz Aperio wireless technology and it compatible with compatible with most access control platforms.

Making situational awareness and management easier, the unit has real time DPS, tamper, REX and battery health monitoring and control. The device can be ordered factory configured in monitored and non-monitored versions, with the monitored version covering latch and door position.

There’s also support for HID multiCLASSSE and NFC/BLE mobile access card technologies on the reader side and universal compatibility with nearly all cylindrical and mortise latch bolts on the locking side.

There’s also dynamic integrated field adjustability, interchangeable face plates and accessories, modular construction for easy installation, flexible field configurable upgrade options and fully encrypted data transmission for enhanced security.

As with any battery-operated reader and strike, an installer’s first question is going to be about battery life. Using a combination 2 AA LR6 1.5V Lithium-Ion batteries gives an estimated 45,000 locking cycles, which is good going. You can use alkaline battery types as well, but they don’t have the same lifespan. A micro-USB port allows emergency power.

The strike has an operating temperature -25 to 60C, is IP65 rated against water and dust, supports a wide range of HID credentials, including 13.56MHz, EV1-SE, HID Prox, MIFARE Classic, IOProx, EV2 and SEOS iOS Apple Wallet.

You can learn more about ASSA ABLOY’s ES100 wireless strike from the local team, see the specifications here, or read more SEN news here.

ASSA ABLOY ES100 Wireless Strike Features:

  • Non-handed installation
  • Fail secure operation (standard)
  • Static strength 680kg
  • Dynamic strength 70 ft-lbs
  • Interchangeable faceplates and accessories
  • Integrated locked state and tamper monitoring
  • Field adjustable integrated shim for changing door conditions
  • Fully finished faceplate, keeper, case, trim, and strike body
  • Stainless steel tamper resistant construction
  • Strike body depths 1500: 35mm 1600: 41mm
  • UL 10C fire rated, 3-hour single door (fail secure only)
  • UL 10C fire rated, 1.5-hour double door (fail secure only)
  • CAN/ULC-S2014 fire door conformant
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door compliant
  • ANSI/SDI A250.13 windstorm resistant
  • Florida Building Code approved TAS 201, 202, 203
  • ANSI-ASTM E330 and RoHS compliant.
