ASSA Abloy ES8100 V-lock

ASSA Abloy ES8100 V-lock

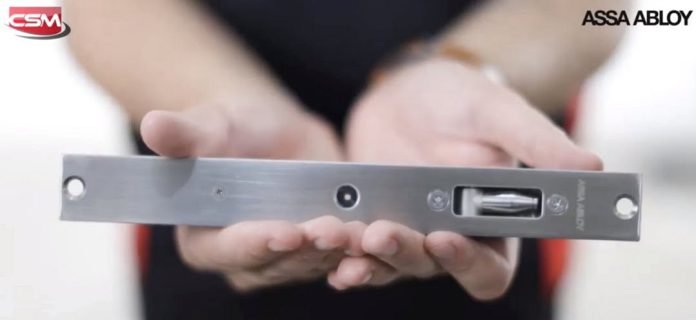

ASSA Abloy ES8100 V-lock from CSM is a SCEC-endorsed high torque motorised bolt that moves from the vertical to the horizontal position when locked.

The ES8100 features a stainless-steel lock body and faceplate, a bolt with a diameter of 11mm and a projection of 20.5mm, offers a maximum resistance of 1000kg with supported strike plate and meets S3 (AS4145.2­ 1993) security levels and has been used successfully in PAS24 security door testing.

Other features of this lock include pre-load capability of up to 15kg of side pressure in 3-wire mode, power to lock (fail safe) power to open (fail secure) field configurable, SCEC-endorsed (intruder resistant bracket required) and 1 second unlatching speed.

Ideal for 180-degree glass door swing applications, there’s a surface mount accessory kit and the lock is fire tested to BS EN 1634­1 for 30 and 60 minute when installed on a timber door.

Current draw is a minimum of 1A, monitoring options include COM, NO, NC with voltage-free changeover contacts rated at 100mA, the lock has an MTBF of 300,000 operations and an operating temperature range of -20C to 60C.

Voltage options are 12 to 24V DC with a voltage tolerance at 12V of +15 per cent ­ 0 per cent and at 24V +/­ 15 per cent, delivers fail safe unlocking with a 3kg maximum load at the bolt, and can handle door misalignment of up to 3.5mm +/- without impacting on operation.

Contact CSM for more information about the ES8100 V Lock.
