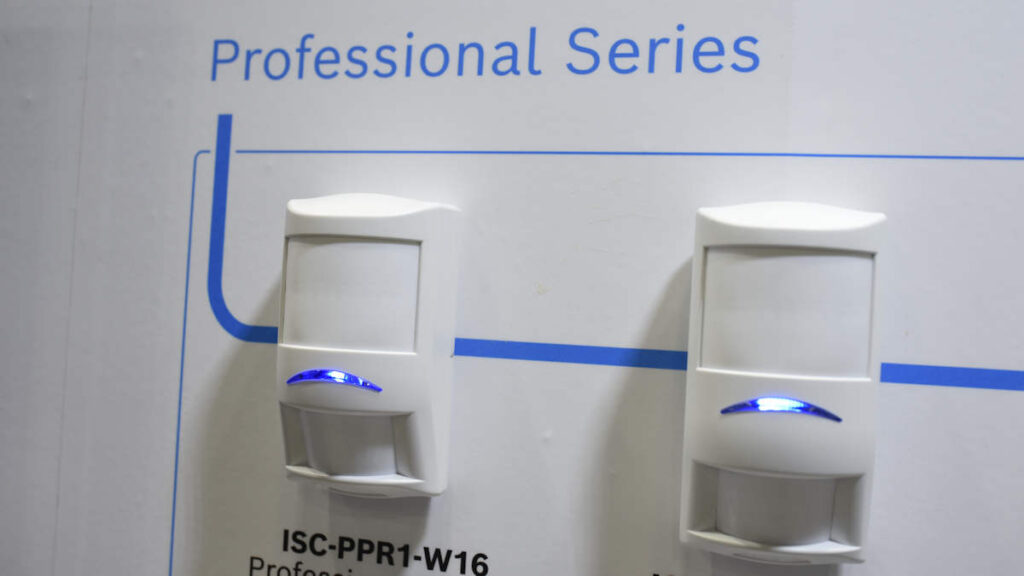

Bosch Professional Series ISC-PPR1-W16 PIR Detector With 18 x 25-Metre Coverage.
Bosch Professional Series ISC-PPR1-W16 PIR Detector – Bosch’s New Professional Series ISC-PPR1-W16 PIR Detector with Bosch Sensor Data Fusion and Tri-Focus optics offers 18 x 25-metre (or selectable 8 x 10m) detection coverage.
Designed for large commercial indoor applications, the unit’s sensor data fusion technology ensures that the detector sends alarm conditions based on precise information, while its Bosch Tri-Focus optics eliminate coverage gaps and respond efficiently to intruders.
The self-locking 2-piece enclosure, built-in bubble level, flexible mounting height, and 3 optional mounting brackets simplify installation and reduce service time.
Sensor data fusion technology uses a software algorithm to gather signals from multiple sensors, including 2 pyroelectric sensors, a room temperature sensor, and a white light level sensor. The microcontroller analyses and compares the sensor data to make alarm decisions.
Meanwhile, Bosch Tri-Focus optics technology uses optics with 3 specific focal lengths, including long-range, middle range and short-range. The detector applies the 3 focal lengths to 86 detection zones, which combine to make 11 solid curtains of detection.
Tri-focus optics technology also includes 2 pyroelectric sensors, which deliver twice
the standard optical gain. The sensors process multiple signals to deliver precise performance virtually free of false alarms.
At the same time, an internal light sensor measures the intensity of light directed at the face of the detector. Sensor data fusion technology uses this information to eliminate false alarms from bright light sources.
The detector automatically adjusts PIR sensitivity to identify human intruders at critical temperatures. Dynamic temperature compensation detects human body heat accurately, avoids false alarms, and delivers consistent catch performance at all operating temperatures.
Other features include cover and wall tamper switch – when an intruder removes the cover or attempts to separate the detector from the wall, a normally closed contact opens to alert the control panel.
The sensor’s LED brightness adjusts automatically to the surrounding light level. A blue light-emitting diode (LED) indicates an alarm condition and activates during a walk test.
And users can enter a command through a keypad, a control center, or programming software to remotely enable or disable the walk test LED. Users can also locally enable or disable the walk test LED through the DIP switch.
Solid-state relays send silent alarm output signals to provide a higher level of security and reliability. An external magnet does not activate the relay. The solid-state relay uses less current than a mechanical relay, providing longer standby capacity during a power loss.
A sealed optic chamber provides immunity to drafts and insects, reducing false alarms. Small animal immunity reduces false alarms caused by animals less than 4.5kg, such as rodents.
A remote self-test initiates when the walk test input switches to its true state. The alarm relay and alarm LED activate for four seconds following a successful test. The trouble relay activates, and the alarm LED flashes following a failed test.
When the power is lower than 8V, a low input power trouble condition activates the trouble relay and causes the LED to flash. The trouble condition clears automatically when power reaches or exceeds 8V.
When the walk test input switches to its true state for less than two seconds, the LED flashes to indicate the most recent trouble condition. If there is no trouble in memory, the LED does not flash. After t hours, or after the detector receives a second walk test pulse for 2 seconds or less, the LED stops flashing and the trouble memory clears.
You can learn more about the Bosch Professional Series ISC-PPR1-W16 PIR Detector here or read more SEN news here.
Bosch Professional Series ISC-PPR1-W16 PIR Detector Features.
- 18m x 25m or 8m x 10m Selectable Coverage
- Sensor data fusion technology
- Tri-focus optics technology
- Active white light suppression
- Dynamic temperature compensation
- Remote walk test
- Alarm memory
- Draft and insect immunity
- 2m to 3m Mounting height
- Current consumption 10–15 mA
- Dimensions (H x W x D) (mm) 127 high x 69mm wide x 58mm deep
- Operating temperature -29 to 55C
- Tamper relay contact type NC
- Protection Rating: IP41, IK04 (EN 60529, EN 50102).
