Dahua ASC3202B Access Controller Supports 1000 Users, 3000 Fingerprints, 5000 Cards.
Dahua ASC3202B Access Controller – Dahua’s ASC3202B access controller features a built-in web server, and main and sub control modes, with the main control offering access control platform functions via the ability to connect with and manage up to 19 sub controllers.
The system supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode and 50,000 in sub-control mode), and 300,000 records. The ASC3202B accesses card readers through Wiegand and RS-485 protocols, and supports TCP and IP connection, and standard PoE.
The controller supplies power to the lock through its 12V DC output power supply, which has a maximum output current of 1000 mA, and supports configuring the hardware I/O port and exporting configuration diagrams. It supports 2 RS-485 card readers or 2 Wiegand card readers.
The system retains stored data when powered off and supports multiple advanced access control functions, such as role management, 128 holiday periods; block, VIP user, guest user and patrol user lists; first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.

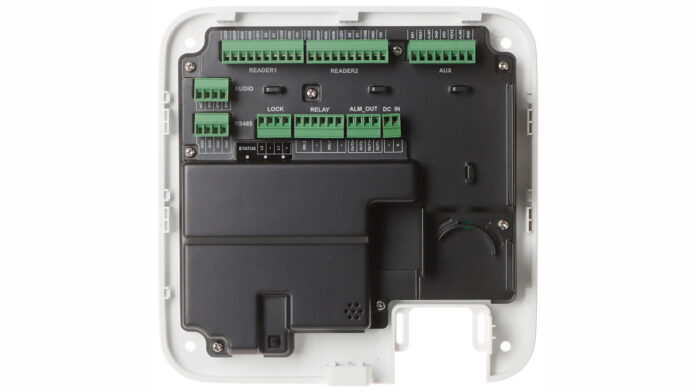

Dahua ASC3202B Access Controller
Authentication options include card, remote, password, fingerprint, Bluetooth and combination unlock. The system has 2 alarm inputs and 2 alarm outputs, 2 exit buttons, 2 door status detection inputs, lock control, tamper alarm, duress alarm, and door sensor timeout. Other alarm events supported include illegal card exceeding threshold and duress fingerprint.
The controller is housed in a neat IK06-rated poly case with an RJ45 10/100Mbps port that has dimensions of 186.4mm x 185.8mm x 58.3mm, a weight of around 1kg, an operating temperature of –10C to 55C, a standby power consumption of around 2W and a total power budget of 1700mA DC or 1200mA PoE.
Interoperability is via ONVIF, CGI and there’s SDK and API support for custom integrations, and the system can be programmed remotely via app. You can learn more about the Dahua ASC3202B access controller here or read more SEN news here.
