New Akuvox S562 7-Inch SIP Indoor Monitor Integrating Access Control, Video Intercom & Door Monitoring.

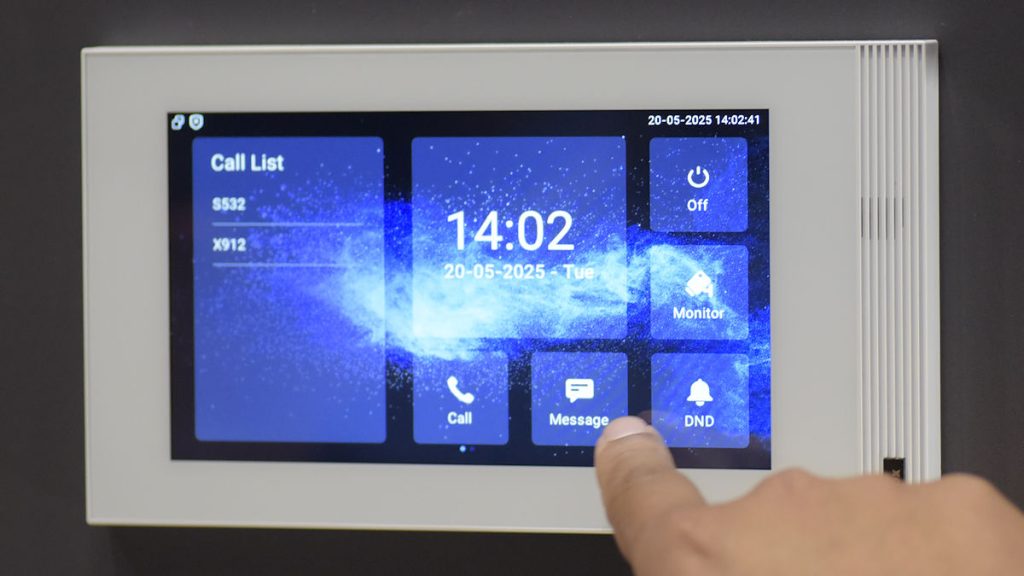

New Akuvox S562 7-Inch SIP Indoor Monitor – New Akuvox S562 is a compact 7-inch SIP indoor monitor designed for apartment, villa and office applications.
The unit integrates door intercom, video monitoring, access control management and web-based configuration in a single device. It features a 1024×600 resolution capacitive touch display and supports audio and video over SIP with narrowband and broadband codecs including G.711a/u and G.722 audio and H.264 video.
The unit supports 8 I/O ports, one RS485 port, a bell input, and a single relay output for door release. Audio input is handled via a 42dB microphone, with audio output through a 4Ω 2W speaker. Networking is via dual 10/100 Mbps RJ45 ports, with power delivered over 802.3af PoE or an optional 12V DC input.
Deployment options include wall mount or desktop installation. System management is via a web portal supporting remote provisioning, packet capture, firmware upgrades and configuration backup. The S562 integrates with access systems via system logs, including door access events, and supports integration over common IP protocols including HTTPS, SNMP, RTSP and DHCP.

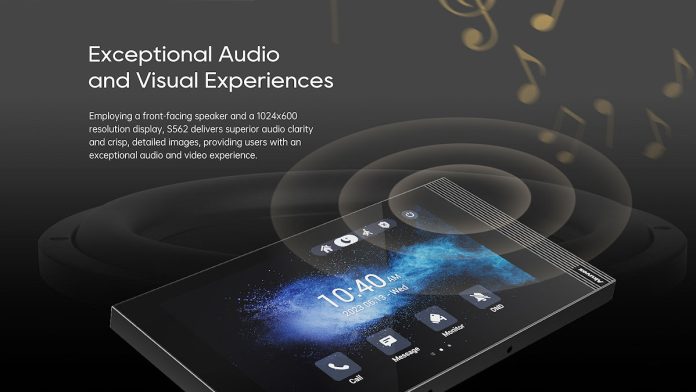

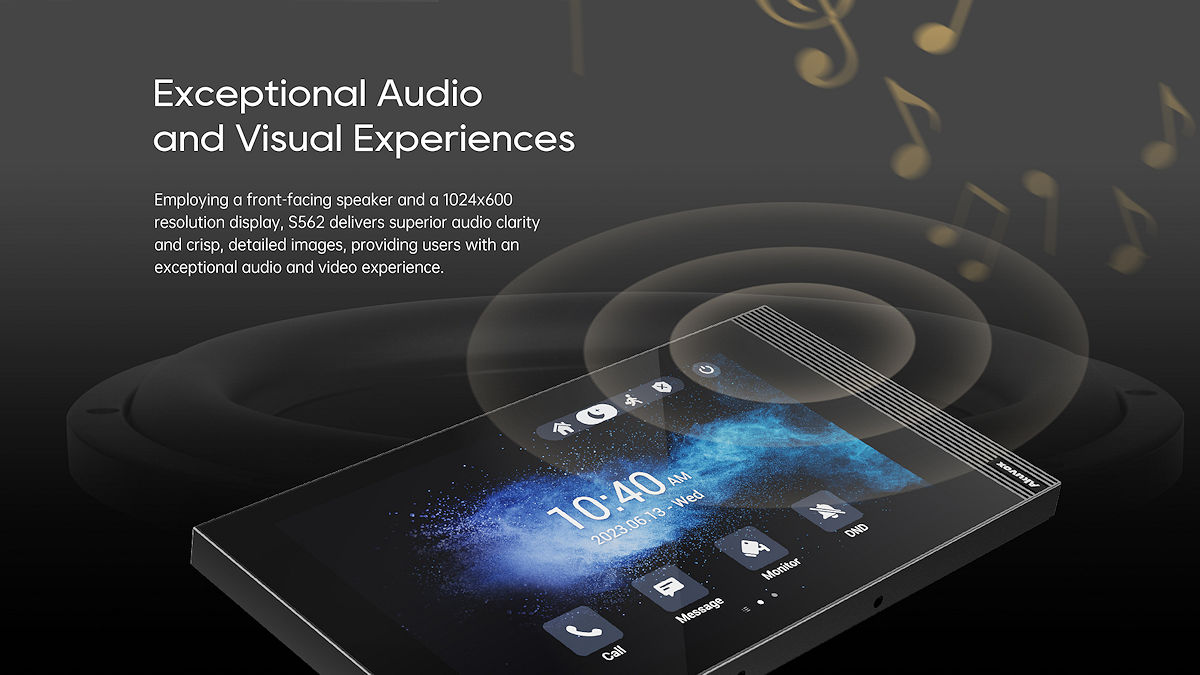

The screen features a 600:1 contrast ratio with 250 cd/m² brightness and a viewing angle of 50 degrees left/right and up to 50 degrees downward. Touch input is via a projected capacitive panel and the unit is designed to operate in temperatures ranging from -10C to 45C.
We checked this monitor and others out at SecTech recently – Akuvox makes some nice gear — you can learn more from local distributor SecuSafe here, or read more SEN news here.
New Akuvox S562 7-Inch SIP Indoor Monitor Features
- 7-inch 1024×600 capacitive touch screen
- SIP audio and video with H.264, G.722, G.711
- 8 I/O ports, 1 relay out, RS485 and bell input
- Dual 10/100 Mbps Ethernet with PoE
- Web portal with provisioning, logging and upgrade functions.
