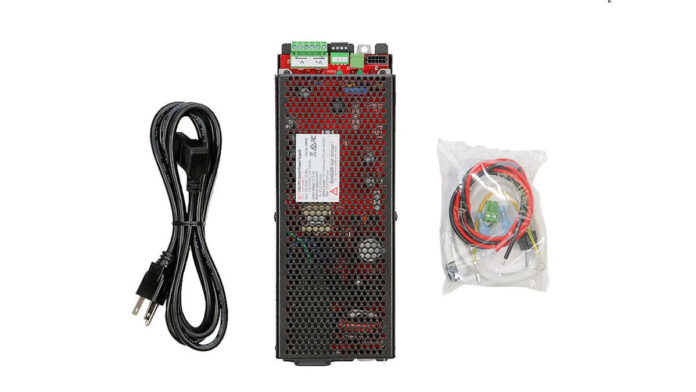

New Inner Range 10A Power Supply Monitors Power, Battery, Fuse Status.
New Inner Range 10A power supply monitors – Inner Range’s new 10-amp 13.75V DC power factor corrected (PFC) smart power supply unit (PSU) is designed to monitor power supply status, battery status and fuse status pivotal to the operation and performance of security systems.
The 10-amp smart PSU is designed primarily for use as a battery-backed supply for Inner Range modules supporting the Quick-Connect external power bus connection. This includes Inner Range’s standard LAN Access Module (SLAM), Intelligent LAN Access Module (ILAM), 8-Zone LAN Expander and the Integriti Access Controller (IAC).
When connected to Inner Range modules the 10-amp smart PSU offers quick connect status monitoring of critical power-related aspects such as battery fault, low battery, battery not present, battery failed test, AC supply failure, supply low volts, power supply failure and status monitoring of all smart fuses. It also features general purpose AC fail and battery fail alarm outputs and a separate battery charger output with deep discharge protection.
Featuring a reliable design that offers exceptional stability when used with the recommended battery type the 10-amp smart PSU is also suitable for providing power to card readers including proximity type reader heads and can be used as a general purpose, battery-backed supply to power legacy or 3rd party equipment via the plug-on screw terminals.
You can learn more about the new Inner Range 10A power supply here or read more SEN news here.
New Inner Range 10A Power Supply Features:
• High-level monitoring of PSU status (with the above modules):
– Battery Fault, Low Battery and Battery Not Present
– Battery Failed Test – AC Supply Failure
– Supply Low Volts – Power Supply Failure
– LAN+ Smart Fuse Tripped – Detector+ Smart Fuse Tripped.
• Dynamic battery testing
• Deep Discharge Battery protection
• Battery reverse polarity protection
• Quick-Connect PSU interface for Inner Range modules
• Fully overload protected
• Smart Fuse protection
• Intelligent load sharing
• LED status indicators
• Universal low-level status outputs – AC Fail & Battery Fail
• Separate battery charger output
• Constant current limiting on battery charger output
• 3 x heavy duty DC output connections
• 110-240V AC IEC mains cable input
• High-level monitoring of PSU status (with the above modules):
– Battery Fault, Low Battery and Battery Not Present
– Battery Failed Test – AC Supply Failure
– Supply Low Volts – Power Supply Failure
– LAN+ Smart Fuse Tripped – Detector+ Smart Fuse Tripped.
• Dynamic battery testing
• Deep Discharge Battery protection
• Battery reverse polarity protection
• Quick-Connect PSU interface for Inner Range modules
• Fully overload protected
• Smart Fuse protection
• Intelligent load sharing
• LED status indicators
• Universal low-level status outputs – AC Fail & Battery Fail
• Separate battery charger output
• Constant current limiting on battery charger output
• 3 x heavy duty DC output connections
• 110-240V AC IEC mains cable input.
