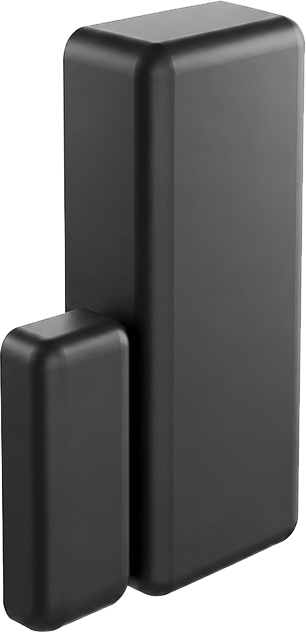

PYGUARD Door & Sensor Monitor With LTE-M For Remote Security Applications.

PYGUARD Door & Sensor Monitor With LTE-M – PYGUARD, made by high end access control manufacturer, Steinbach & Vollmann GmbH, delivers electronic status monitoring of doors and external sensors using low-cost LTE-M IoT SIMs, NB-IoT or 410-450MHz radio communications.

The monitor reports changes in the status of a door or connected sensor to PYSUITE software, allowing remote monitoring of entry points across secured areas when an electronics access control system has not been installed.

PYGUARD’s integrated reed contact provides door status monitoring, while an external input supports pulse or changeover contacts from devices including gas and fault detectors. PYGUARD also monitors tamper and battery status, with events available through PYSUITE or the PYAPP application.

The PY9053 version incorporates an external antenna connected by a 3m cable and SMA connector, allowing the antenna to be positioned independently of the monitor where radio conditions or the installation location require it.

How it reports backThree ways to reach PYSUITE, no cablingPYGUARD is built to run without an access control system on site. The path it uses depends on coverage and cost at the location — not which one is fitted.

Why it matters: most electronic monitoring assumes an access control system is already on site to carry the alert. PYGUARD is built for the opposite case — doors, gates or standalone sensors that have nothing else installed — so the reporting path has to be the thing that is fitted, not the network. Diagram is schematic; coverage and suitability of each path are site-specific and not stated in this release.

The unit has an ABS enclosure, screw-on fixing and an operating temperature range of -20C to 65C, with relative humidity rated to 95 per cent. The enclosure is rated IP65 against dust and water though STUV only claims a rating of IP54 for the overall system, likely to cover use of that SMA connector mentioned earlier.

Batteries deliver a service life of up to 5 years before replacement, while an optional 230V mains connection can be used with rechargeable battery backup.

You can see more of STUV’s heavy duty access control range here or read more SEN news here.

Worth checking before you specify

Two ratings, one product

The enclosure and the system as a whole are not rated the same, and the article says so plainly.

IP65Enclosure

→

IP54System, per STUV

Likely reasonThe lower system rating most likely accounts for the external antenna and its SMA connector on the PY9053 — a penetration the sealed enclosure alone does not have. This reading is SEN’s, not a statement from STUV.

If dust and water ingress matters for the installation, specify to the lower, system-level IP54 figure rather than the enclosure’s IP65 — and confirm with STUV before relying on either for an outdoor or exposed application.

STUV PYGUARD PY9053 · at a glance

Monitor a door with nothing else installed

Battery-powered status monitoring for doors and external sensors, reporting over cellular or licensed radio.

5^YRBattery service life

3^PATHLTE-M · NB-IoT · radio

An integrated reed contact monitors the door itself, while an external input takes pulse or changeover contacts from other devices — gas and fault detectors among them. Tamper and battery status are reported alongside door state, through PYSUITE or the PYAPP app.

IP65Enclosure rated

−20 to 65Degrees C operating

95%Relative humidity

SMAExternal antenna, 3m

Specifications as published by Steinbach & Vollmann (STUV). Summary compiled by SEN.

PYGUARD Door & Sensor Monitor With LTE-M

PYGUARD Door & Sensor Monitor Features

Integrated reed contact
Tamper and battery monitoring
External pulse/changeover contact input
LTE-M and NB-IoT communications
410-450MHz radio module
PYSUITE and PYAPP monitoring
Battery life up to 5 years
External antenna with 3m cable and SMA connector
Optional 230V supply with rechargeable battery backup
Operating temperature from -20C to +65C
IP65 rating according to the specs.

“PYGUARD Door & Sensor Monitor With LTE-M For Remote Security Applications.”

STUV PYGUARD PY9053Full specifications and the datasheetCommunication options, monitoring inputs and mechanical detail are set out in full in the manufacturer’s datasheet, alongside STUV’s heavy duty access control range.

PY9053 datasheetPDF · STUV→STUV access control range→More SEN news→
