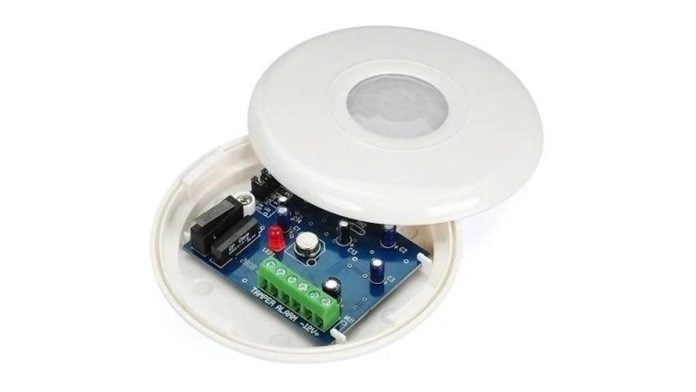

RISCO LuNAR 360 PIR With 12m Range.
RISCO LuNAR 360 PIR – RISCO LuNAR RK2000DPC00B 360-degree ceiling mount PIR from LSC offers a detection range of 12 metres through 360 degrees.
Designed for professional installations, LuNAR 360 incorporates anti-mask, RISCO Anti-Cloak Technology (ACT) and features built-in end-of-line (EOL) resistors to simplify installations.
There’s active IR anti-mask, built-in triple EOL resistors that are jumper selectable, cover and back tampers, walk test LED, low profile design, dual element pyro, with digital signal processing, RF immunity to EN50130-4 and digital temperature compensation.
The Fresnel lens has a 110-degree angle of view with 360 overview, and detection zones have 3 optical levels and 12 external sectors. Operating temperature is 0-55C, supply voltage is 9-16V DC regulated, and pulse count is 1-3 selectable.
You can find out more about the LuNAR 360 PIR from LSC here or read more SEN news here.
RISCO LuNAR 360 PIR Features:
- Ceiling Mount Detector
- PD6662, EN50131: Grade 2
- Dual Element PIR
- Intelligent Digital Signal Processing
- Digital detector and temperature compensation
- Built-in EOL resistors
- Coverage: 360° 12m diameter
- Mounting height: 2.8m-4m.
