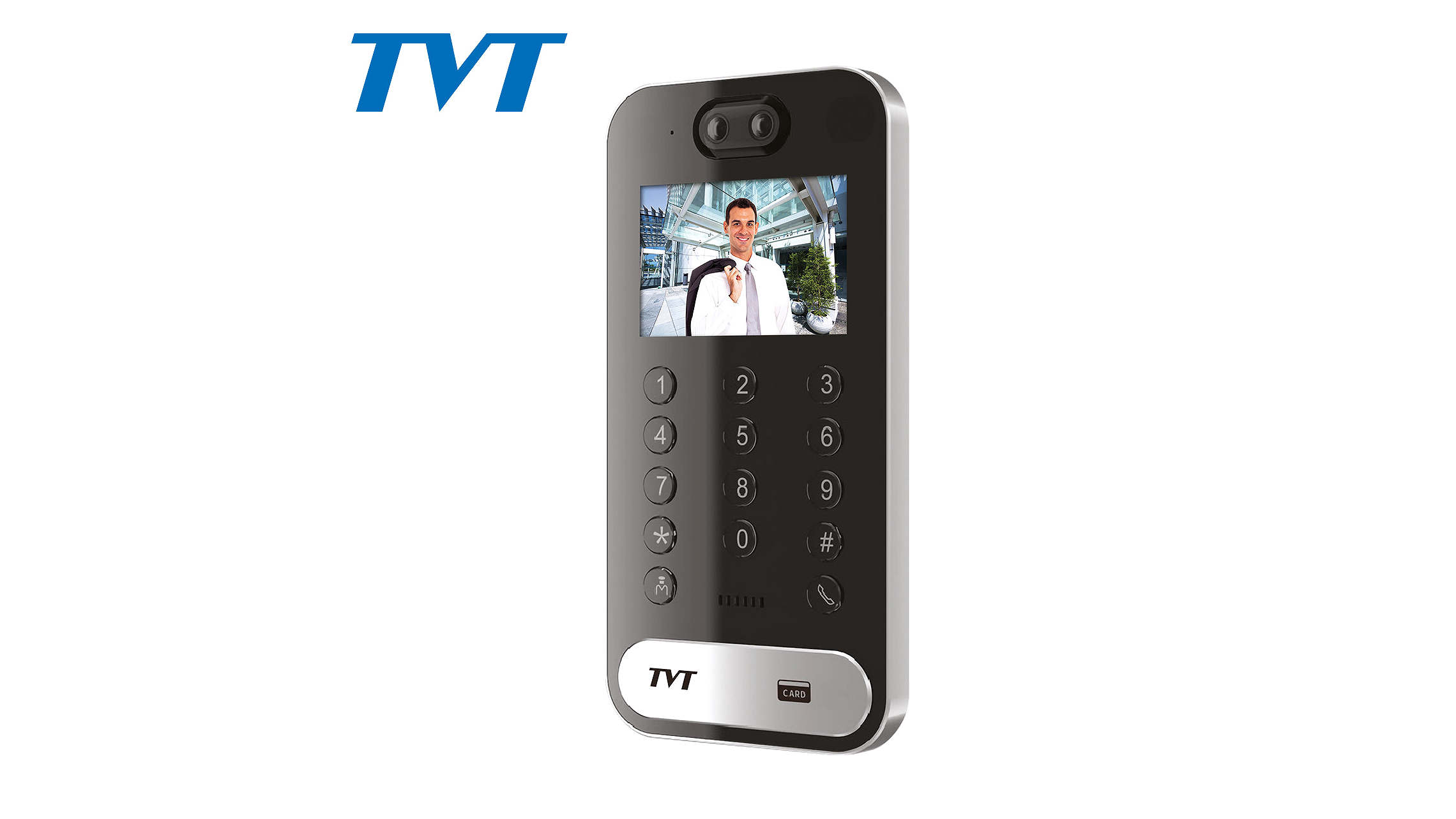

TVT TD-E2223-EM Intercom Door Station With NDAA Compliance And Support For RS485 Readers.
TVT TD-E2223-EM Intercom Door Station – TVT’s TD-E2223-EM/IC/PE/WF intercom door station offers a comprehensive solution for secure entry and video surveillance with a 2MP dual-lens camera, advanced face recognition, multi-factor access control, and support for cloud connectivity via Wi-Fi or LAN.
The unit features a 3.5-inch TFT screen and built-in IC/EM card reader, and delivers facial identification within 0.3–2m, with anti-spoofing and analytics including face detection, capture, and comparison.
The station supports multiple access methods—face recognition, card, password, indoor station, and mobile app—and integrates with RS485 readers and access systems.
Intelligent features include mask detection, duress function, tamper alarms, and support for event-triggered alerts when doors are unsecured or breached.
With a 120dB WDR camera supporting IR night vision, H.265+ video compression, and up to 256GB SD storage, the device also supports ONVIF protocol and encrypted transmission.
Remote monitoring is available via app, browser, or CMS, with PoE, IP67-rated weather protection and IK04 protection against impact. Operating temperature range is -20 to 60C.
You can contact a distributor of the TVT TD-E2223-EM intercom door station and other TVT solutions here or read more SEN news here.
TVT TD-E2223-EM Intercom Door Station Features:
- 2MP dual-lens camera with 139-degree horizontal field of view
- 3.5-inch 320 x 480 TFT display with auto-wakeup
- Face recognition with spoof detection (0.3–2m range)
- Access via face, card (IC/EM), password, app, or indoor station
- Anti-tampering, forced-door, and door-open alarms
- Wi-Fi 2.4GHz, P2P, PoE, and SD card support (up to 256GB)
- Intelligent analytics: face detection, capture, comparison
- Audio support with echo cancellation and noise suppression
- IP67 rating against water and dust IK04 rating against impact
- Operating temperature -20C to 60C.
