Camden CX-ED1959-MB Outdoor Electric Strike Released.

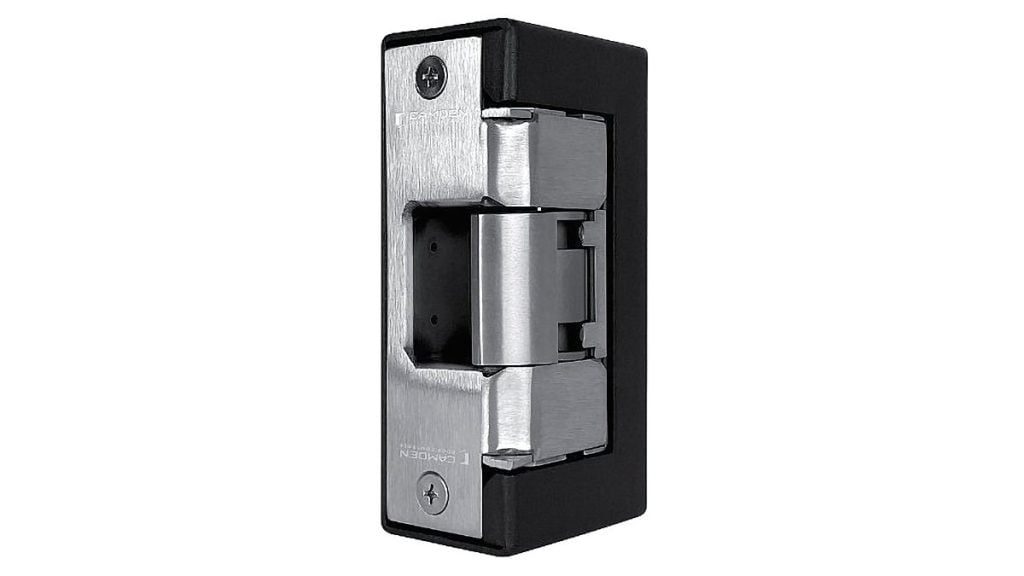

Camden CX-ED1959-MB Outdoor Electric Strike – Camden Door Controls has introduced its new Grade 1-rated CX-ED1959-MB outdoor-rated electric strike for external doors and gates.
The CX-ED1959-MB features heavy-duty stainless-steel construction with an integrated ANSI square faceplate, is UL 294 listed and is compatible with cylindrical locksets and mortise locksets without deadbolts.
The universal strike design features 7/8-inch latch projection, field selectable 12/24V DC voltage, and fail safe/fail secure operation. The strike delivers continuous duty operation, is UL certified to 250,000 cycles and factory tested to 1 million cycles, and is backed by Camden’s 5-year warranty.
The CX-ED1959-MB also includes a heavy gauge painted steel mounting box at no additional charge and features easy fit connectors for faster installations.
Camden locks are available from Taylor Security – you can check with them here for local availability of the Camden CX-ED1959-MB outdoor electric strike or read more SEN news here.
Camden CX-ED1959-MB Outdoor Electric Strike Features:
- Voltage – 12/24 VDC
- Current Draw – 280mA/140mA
- Static Strength – 1500 lbs.
- Dynamic Strength – 70 ft-lbs
- Endurance – 1,000,000 cycles (factory tested)
- Certified – 250,000 cycles (UL Certified)
- Latch operating – 40mm x 22mm
- Modes – Selectable Fail Safe/Fail Secure
- Duty – Continuous
- Dimensions – 124mm x 42mm x 42mm.
