HomeNewsCSM Distributing Arrowhead EC-i Infinity

CSM Distributing Arrowhead EC-i Infinity

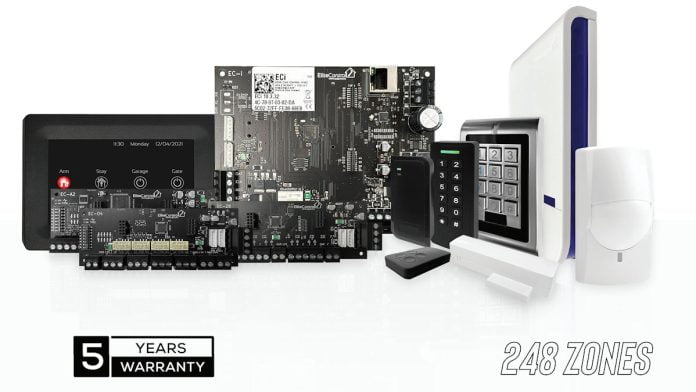

CSM Distributing Arrowhead EC-i Infinity Access Control Panel.

CSM Distributing Arrowhead EC-i Infinity Access Control Panel.

CSM Distributing Arrowhead EC-i Infinity – CSM is distributing Arrowhead Alarm Products EC-i Infinity access control, alarm and automation panel.

Designed and manufactured in New Zealand, Infinity is a modular security solution designed for residential, as well as small and medium commercial applications.

Infinity Series alarm panel supports 248 inputs, 32 outputs, 32 keypads, 32 areas/partitions, 32 schedules, 32 access levels, 2000 users (1900 can be radio fob users) and 10,000 events. The system can be managed via a 5-inch touch screen or a traditional full text LCD keypad, or via an LED keypad.

Other notable features include Ethernet on board, EliteCloud smartphone app with EliteCloud dashboard coming soon, custom I/O programming, fire panel integration, Infinity long range wireless, RS232 via an optional plug-in module and home automation system integration.

CSM Distributing Arrowhead EC i Infinity 2 LR
CSM Distributing Arrowhead EC-i Infinity 3

CSM Distributing Arrowhead EC-i Infinity

In terms of expansion, there are 8 zones on the main panel, as well as 30 x EC-Z8 8-way input boards. All zones have their own away mode and stay mode entry timers, programmable EOL for either selectable single EOL, or double for zone + tamper, and hardwired and radio zones may be intermixed.

The integrated RJ45 port may be used for alarm reporting via IP to a control room and/or to the Elite app. It can also used for system programming via an onboard web browser interface, or for serial over IP to 3rd party devices.

All bus expansion modules, except infinity link radio transceiver, support the plug on EC-PSU2 power supply module. This module requires 16VAC and supports AC fail and dynamic battery testing. These fault conditions are individually reported.

Infinity link is the radio receiver for use with the Infinity 2-way radio products. These are internal PIR, external dualtech, radio reed with auxiliary input, 4-button fob transmitter with haptic feedback, 1 channel panic pendant transmitter.

An external radio siren will be released soon, along with a single channel wireless output board for gates or roller doors. You can find out more about Arrowhead EC-i Infinity from CSM here or read more SEN news here.

CSM Distributing Arrowhead EC-i Infinity Features:

  • 248 zones without zone doubling
  • Up to 2000 users without any add on
  • 10,000 historical events
  • 5-inch touch screen, traditional full text LCD, slimline touch LED keypad
  • Keypad available with an inbuilt prox
  • 32 alarm areas, 32 points of access control
  • 2000 Users, without any add ons to the panel
  • Users’ attributes can be set individually
  • 10, 000 historical events logged with the software.

“CSM Distributing Arrowhead EC-i Infinity Access Control Panel.”

CSM Distributing Arrowhead EC i Infinity 3 LR
CSM Distributing Arrowhead EC-i Infinity access control.
