Gallagher SMB Expands To 30 Doors With Latest Upgrade To Gallagher’s Cloud Access Solution.
Gallagher SMB Expands To 30 Doors – Gallagher Security has expanded the recommended capacity of its SMB access control platform to 30 doors per SMB controller, increasing the scope of the cloud-based system for small and medium business applications.
Capacity per SMB controllerFrom a 4-door kit to a 30-door site
30doorsRecommended per controller, now
3× the 10-door expanded system SEN reviewed in 2021, and 7.5× the 4-door base kit it shipped with.
Secured doorAccess grantedBeyond capacity
Controller 6000Local access and alarm decisions, cloud managed
500 mRS-485 HBUS run for I/O boards
4 credentialsSmartphone, key tag, card, user code
Offline-safeDoors keep working; logs sync on reconnect
Source. 30 doors per controller is Gallagher’s recommended figure, as stated by Gallagher Security. The 4-door base kit (3.5 A supply) and 10-door expanded system (dual cabinet, 8 A supply) are from SEN’s December 2021 review. Multiples are SEN calculations. Gallagher has not said what cabinet, power or reader hardware a 30-door site needs; confirm with Gallagher or a distributor.
Greater door capacity means installers and integrators can deploy SMB across larger sites while taking advantage of Gallagher’s flexible SMB solution, and with management handled through Gallagher’s cloud-connected platform and the SMB mobile app.

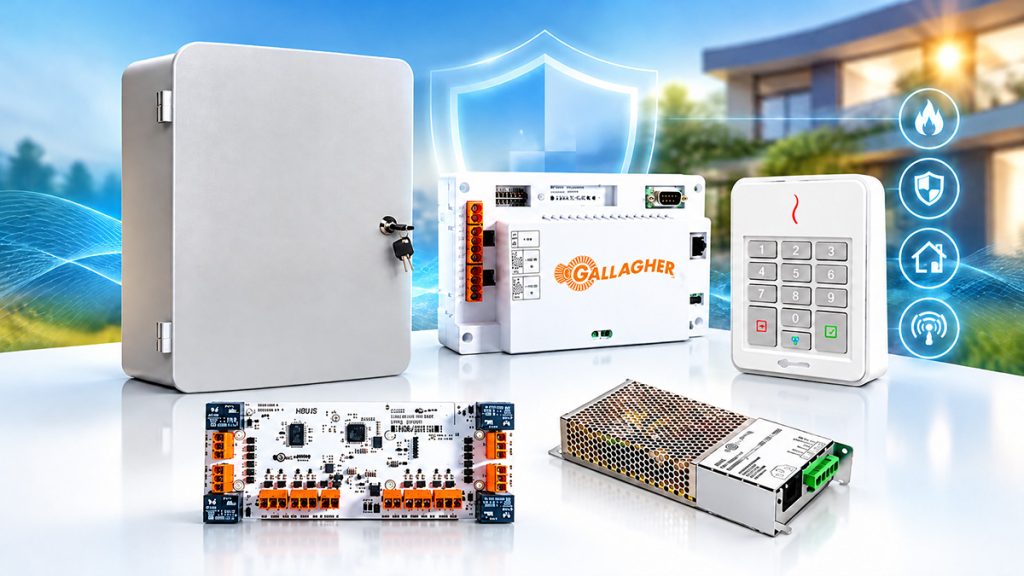

SMB Controller 6000 manages local access control and alarm functions while maintaining a connection to Gallagher Cloud for remote management. Access control continues locally if the internet connection is lost and updates event logs upon reconnection, while Gallagher’s SMB readers support smartphone, key tag, card and user-code credentials.
When the internet dropsThe cloud manages it. The controller decides at the door.Cut the connection and watch: doors keep granting access locally, and the event log catches up when the link returns.
Demo cycles until you choose
Gallagher CloudRemote management and the SMB appConnected
EVENTS
Controller 6000Local access control and alarm functionsQueued 0
PhoneSmartphone
TagKey tag
CardCard
CodeUser code
Online.The controller grants access at each door and streams events to Gallagher Cloud.
Source. Local operation during an outage, event-log sync on reconnection and the four credential types are as stated by Gallagher Security. The animation is illustrative; event rates and queue size are not real figures.
Gallagher SMB Expands To 30 Doors

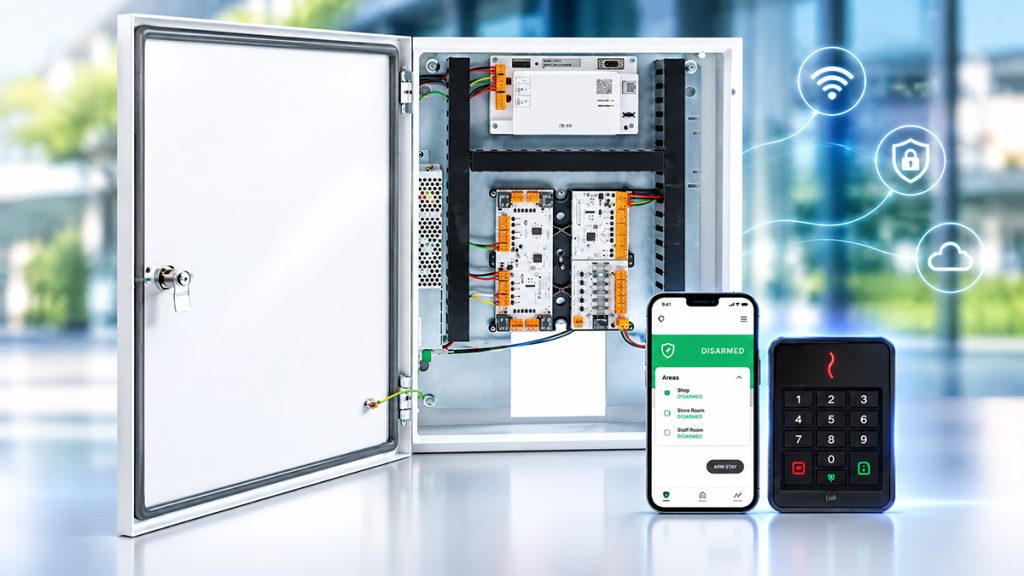

This system can also use Gallagher SMB HBUS I/O boards for additional monitored inputs and outputs, taking the system to an elevated level. The RS-485-based HBUS protocol supports communications over distances of up to 500m, with multiple boards able to share a cable run.
HBUS expansionOne cable run, up to 500 metres, shared by several boardsHBUS I/O boards add monitored inputs and relay outputs on an RS-485 run from the controller. Watch the signal travel the run and each board’s devices respond.
0 mup to 500 m
SMBController 6000
I/O BOARDDoorContact in, release out
I/O BOARDIntrusion detectorMonitored input
I/O BOARDNO/NCPlant alarm + sirenInput in, siren out
← swipe to see the full run →
Inputs can monitorAccess-controlled doorsIntrusion detectorsNO/NC plant and equipment alarmsOther contact devices
Relay outputs can driveDoor releaseSiren activation
Source. RS-485 HBUS, the 500 m distance, shared cable runs and the input and output functions are as stated by Gallagher Security. Board count, board positions and timing are illustrative. The release does not state how many boards one run supports.
Meanwhile, inputs can monitor access-controlled doors, intrusion detectors, NO/NC alarms from plant and equipments, as well as from other contact devices, while relay outputs can be used for functions including door release and siren activation.
You can learn more about Gallagher SMB from Gallagher Security here or by contacting the company’s local distributors – there’s more SEN news here.
Next stepQuoting a bigger SMB site?
Gallagher now recommends up to 30 doors per SMB controller. Check what cabinet, power supply and reader hardware a larger site needs with Gallagher or a local distributor before you price it.
