Paradox HD10 Alarm Verification Camera For Internal And External Applications.

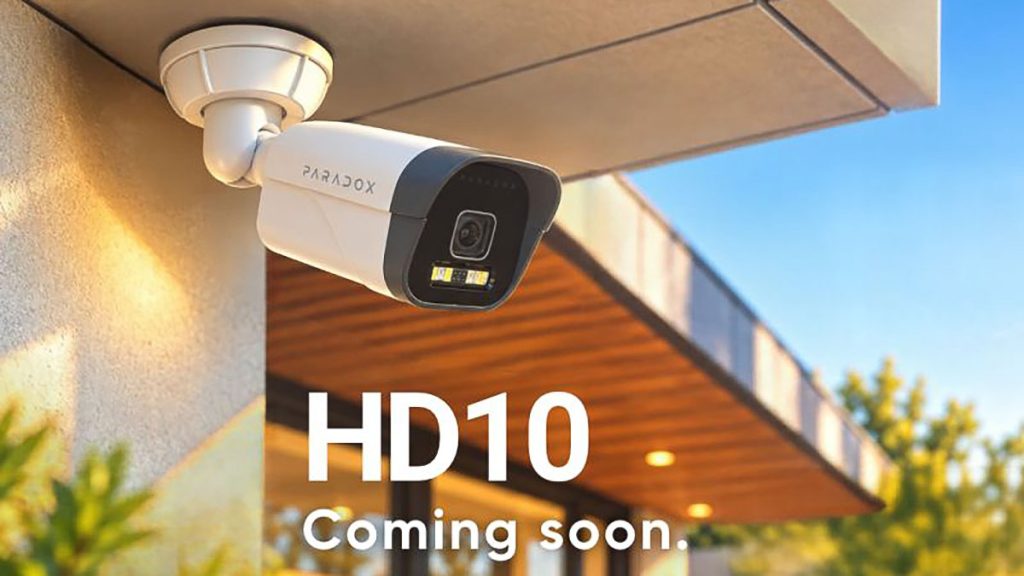

Paradox HD10 Alarm Verification Camera – Paradox has introduced the HD10 alarm verification camera, a 2MP Full HD camera designed for indoor and outdoor surveillance and integrated into the Paradox security ecosystem – you’ll need to check with your local supplier for availability.
Paradox HD10 uses a CMOS sensor with a 108-degree horizontal angle of view and supports intelligent, system-triggered recording for alarm and motion events.
The HD10 uses adaptive dual night vision with infrared and white LEDs and incorporates 2-way audio for live communication. Video is encoded using H.264 or MJPEG, with RTSP and RTP support, while a microSD card provides up to 128GB of local storage. Alarm recordings can run for up to 5 minutes, with motion recordings up to 2 minutes.
Work it out for your siteHow far does 108° at 2MP hold detail?A wide view spreads 1920 pixels across a lot of scene. Drag the distance to see the pixel density at that range and which IEC 62676-4 detail level it reaches.
Identify ≥250 px/m · to 2.8 mRecognise ≥125 px/m · to 5.6 mObserve ≥62 px/m · to 11.2 mDetect ≥25 px/m · to 27.9 m
139px/mRecognise
At 5 m the scene is about 13.8 m wide, so a person there gets about 139 pixels per metre.
Source. Resolution and angles of view as published by Paradox; IP56 as reported by SEN. Detail bands are from IEC 62676-4. Pixel densities and distances are SEN calculations for an ideal lens: wide-angle distortion, compression, lighting and night mode all reduce real detail, and Paradox does not publish an IR range. A sizing sketch, not a design document.
The camera connects to the Paradox M Series via PoE and can be managed through the BlueEye app. Thanks to K70M keypad integration, users can also access live views from up to 30 HD10 cameras. The camera also supports remote firmware upgrades over Ethernet.
Recording on the cardEvent clips, not continuous videoThe HD10 records when the system tells it to: up to 5 minutes for an alarm, up to 2 for motion, onto a microSD card of up to 128GB.
0 min1 min2 min3 min4 min5 min
Alarmmax 5 min
5:00
Motionmax 2 min
2:00
Event triggers recording
microSD card16GB is Paradox’s recommended minimum; 128GB the maximum.
Paradox does not publish HD10 bitrates. Busy or night scenes run higher.
1,706full-length 5-minute alarm clips
4,266full-length 2-minute motion clips
Source. Clip limits, card sizes and the 16GB minimum as published by Paradox. Bitrate is your assumption. Clip counts are SEN calculations using decimal gigabytes; they ignore file-system overhead, audio, overwrite behaviour and MJPEG, which is far larger than H.264. A sizing sketch, not a design document.
There’s a maximum of 2 simultaneous user live streams per camera. Streams use P2P (peer-to-peer) whenever possible, with automatic fallback to cloud streaming when a P2P connection won’t work. A third, independent stream is reserved for CMS and is available following an alarm condition.
Who can watch, and whenTwo user streams, one reserved for the monitoring centreEach HD10 serves at most two user live views. A third stream sits idle for the CMS until an alarm. Switch the connection and the panel state to see how it routes.
Connection
Panel
← swipe to see the full diagram →
Peer-to-peer, no alarm.Two users stream straight from the camera. The CMS stream is idle.
Source. The two-stream limit, P2P with automatic cloud fallback and the alarm-only CMS stream are as published by Paradox; the limit applies however the two streams are routed. The diagram is schematic, and how a monitoring centre receives the stream depends on its platform.
Paradox’s HD10 is designed for external or internal applications, with an IP56 rating and an operating temperature range of -10 to 40C. This camera’s compact enclosure measures 67 x 66 x 146mm and weighs 318g.
You can learn more about the Paradox HD10 camera here or read more SEN news here.
AvailabilityBefore you specify the HD10
Availability varies by market, so check with your local Paradox supplier. The HD10 joins an M Series system over PoE, so confirm compatibility with the panel and keypads you already have installed when you order.
2MP Full HD 1920 × 1080108° horizontal viewAdaptive IR and white LED night visionIntelligent alarm and motion recording2-way audioUp to 128GB microSDPoE (802.3af)BlueEye appK70M live view, up to 30 camerasIndoor and outdoor
