Hikvision HikCentral Mini Cube Video And Access Control In A Compact Platform.

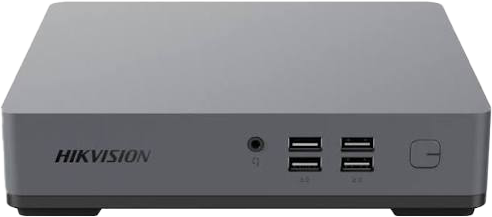

Hikvision HikCentral Mini Cube Video And Access Control – Hikvision’s HikCentral Mini Cube is a compact all-in-one security management platform designed for small and medium-sized businesses, combining video management, access control, monitoring, decoding, client and server functions in a tiny form factor.
The Mini Cube is supplied with HikCentral software pre-installed and licences pre-activated, with Windows 11 included. The standard configuration provides 64 video channels, with expansion available to 128 channels. Access control capacity extends from 8 doors in the pre-activated configuration to a maximum of 32 doors. The platform also supports ANPR, facial and body recognition and people-counting functions.
Hardware includes an i7 processor, 16 GB of memory and a 512 GB SSD. The chassis measures 197.5 x 177.4 x 41.2 mm and weighs 1.45 kg excluding the storage drive. It can be installed horizontally, vertically or mounted behind a monitor.
For video management, the system supports up to 128 cameras, including cameras accessed through ONVIF and third-party devices. The maximum configuration allows up to 8 ANPR cameras and 16 cameras for facial picture comparison and body recognition. HikCentral Mini Cube can also manage up to 64 external streaming servers.

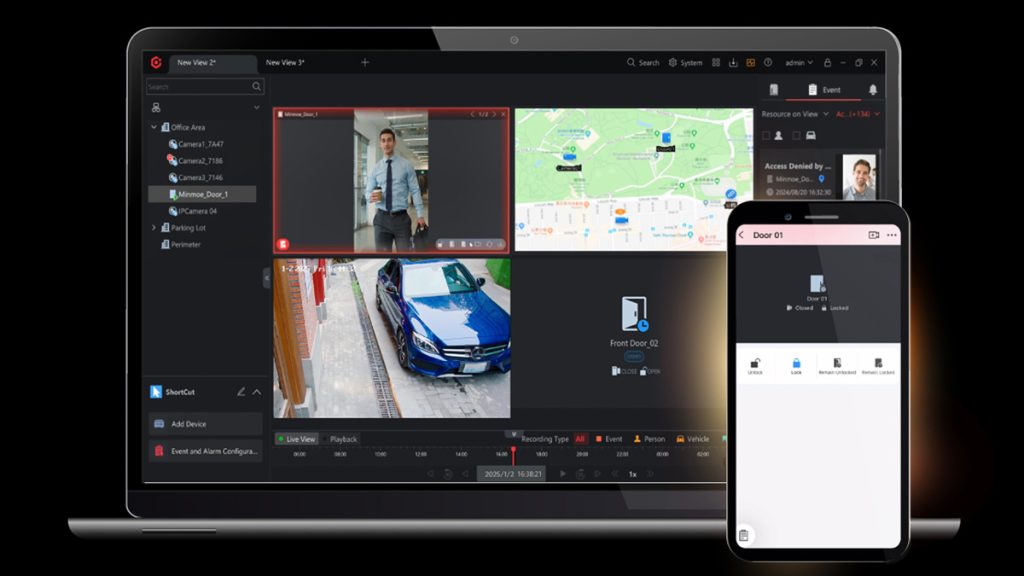

Video functions include live view and playback with automatic main and sub-stream switching, Smart/VCA Search, AcuSearch and AcuSeek, target retrieval and one-click playback. Vehicle and personnel management can be used for list management, alarm triggering and attribute-based searches, while PTZ cameras can be controlled from the video interface.
Storage and recording are handled through the software platform, with multiple recording schedules supported. The published performance specification gives a video storage throughput of 600 Mbps and retention of captured faces, ANPR records, events, intelligent analysis data, access records and system logs for up to 3 years, subject to available storage. The system specification lists a storage capacity of up to 10 million records across these data types.
The access control functions support cards, fingerprints, face, iris and PIN credentials, with batch or temporary access permissions and real-time door status monitoring. Access control can be linked to video for verification, while the system supports up to 500 people, 1500 cards, 1000 fingerprints and 1000 irises in its maximum published configuration.
The platform supports multi-site management, with a single cloud account able to manage multiple servers. Remote management is available through the HikCentral mobile app, including live view and playback, alarm reception, remote door opening and closing, video intercom and searches across video content, access control logs and vehicle records. Where a local network connection is available, the system uses direct connection, while cloud routing is used where only internet connectivity is available.
Mini Cube’s ONVIF support allows third-party cameras to be incorporated, while native protocols and API/SDK support allow integration with devices from manufacturers, including Dahua, Axis and Hanwha.
Hardware connectivity includes 4 x USB 3.0, 4 x USB 2.0, 1 x USB Type-C, Gigabit Ethernet, HDMI and DisplayPort, along with front and rear audio connections. The operating temperature is specified at 0 to 35 degrees Celsius, with a storage temperature range of -20 to 60 degrees Celsius.
You can learn more about Hikvision HikCentral Mini Cube here or read more SEN news here.
- Watch live or play back any camera
- Get alarms as they happen
- Open or lock a door remotely
- Answer the video intercom
- Search video, door logs and vehicle records in one place
- Manage several sites from one cloud login
- Find a person or vehicle fast — Smart/VCA search, AcuSearch, AcuSeek, one-click playback
- Keep watch-lists for plates and people and trigger alarms from them
- Check a door event against the camera that saw it
- Drive PTZ cameras from the video view
- Sit it flat, on its side or behind the monitor — HDMI and DisplayPort out
HikCentral Mini Cube Features:
- 64-channel pre-activated video management, expandable to 128 channels
- Up to 32 access-controlled doors
- i7 processor, 16 GB RAM and 512 GB SSD
- ONVIF support for third-party cameras
- Support for ANPR, facial and body recognition
- Up to 600 Mbps video storage throughput
- Multi-site cloud management
- Remote video, alarms, access control and intercom through mobile app
- 4 x USB 3.0, 4 x USB 2.0, USB Type-C, HDMI, DisplayPort and Gigabit Ethernet
- 197.5 x 177.4 x 41.2 mm chassis, weighing up to 1.45 kg excluding storage.
“Hikvision’s HikCentral Mini Cube is a compact all-in-one security management platform designed for small and medium-sized businesses, combining video management, access control, monitoring, decoding, client and server functions.”
Hikvision HikCentral Mini Cube
