Jack Fuse Releases New ATMOD Models

Jack Fuse Releases New ATMOD Models For 3 State Inputs And Zone Doubling.

Jack Fuse Releases New ATMOD Models For 3 State Inputs And Zone Doubling.

Jack Fuse Releases New ATMOD Models – Jack Fuse has released new ATMOD models to the Jack Fuse range of quick connect, pre-built EOL resistor packs.

According to Keen McKeon of Jack Fuse, the new ATMOD models suit a range of security systems including Reliance, Bosch, CEM and dormakaba.

“For the first time we are providing single end of line resistor ATMODs for both standard 3 state inputs and zone doubling requirements,” McKeon said.

Jack Fuse ATMODs are a quick-connect EOL resistor pack that works with standard security cables and devices. They allow installers to save labour costs and eliminate installation mistakes and are available in common EOL values to suit most security panels.

The ATMOD can easily be terminated to most types of alarm cabling, including multi-core security cable and fly leads from reed switches, electric locks and exit buttons.

Jack Fuse Releases New ATMOD Models 0
Jack Fuse Releases New ATMOD Models 3

Connections to devices without fly leads, such as a break glass unit, is as simple as taking a few seconds to strip short pieces of cable to act as fly leads between the ATMOD and any device with terminals.

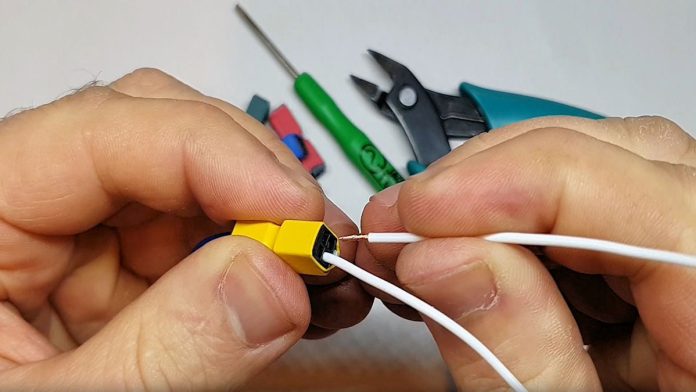

The special high quality terminal blocks allow stripped wires to be pushed directly into the connector without the need for a terminal driver. A spring clamps the conductor making a sound connection that will outperform traditional methods especially in areas prone to movement or extremes of temperature as the spring clamp method imparts a constant ideal pressure on the conductor irrespective of wire size. Wires can be easily removed using a small terminal driver.

A small tab indicates the end of the ATMOD that should be connected to the alarm device and an ATMOD can be reused several times. Minimum conductor size is 24AWG and maximum is 20AWG and the Polyamide 46 units have compact dimensions of 24 (long) x 7 x 8mm.

For a full list of ATMOD models and more information click here, or you can order them at security wholesalers. There’s more SEN news here.

Jack Fuse Releases New ATMOD Models

  • Grey (ATMOD680) – 680Ω/680Ω Resistors | Dormakaba
  • Grey/White (ATMOD122) – 1K/2K2 Resistors | CEM
  • Brown (ATMOD33) 3K3/3K3 Resistors | Reliance
  • Brown/Purple (ATMOD374S) 3K74 Resistor | Reliance
  • Brown/Blue (ATMOD698S) 6K98 Resistor | Reliance
  • Brown/Black (ATMOD33S) 3K3 Resistor | Reliance/Bosch
  • Brown/White (ATMOD68S) 6K8 Resistor | Bosch
  • Brown/Orange (ATMOD36) 6K8/3K3 Resistors | Bosch

“Jack Fuse Releases New ATMOD Models For 3 State Inputs And Zone Doubling.”

Jack Fuse Releases New ATMOD Models 1
Jack Fuse Releases New ATMOD Models 4
