New FSH FCL10 Cabinet Lock With 200kg Holding Strength.

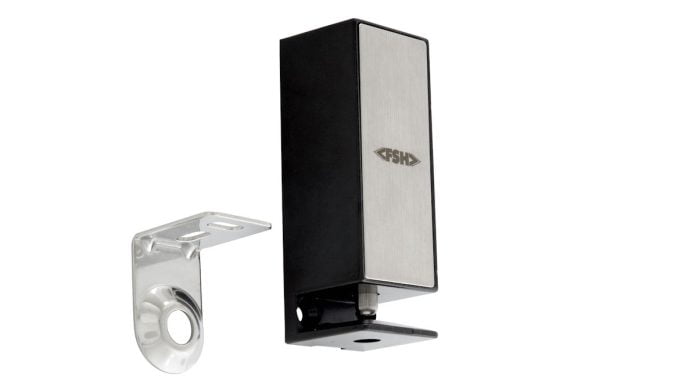

New FSH FCL10 Cabinet Lock – The FSH FCL10 is a compact surface mount electric cabinet lock designed specifically to fit cabinets and lockers with hinged swing through or sliding doors.
The FCL10 can be mounted either horizontally or vertically and is field selectable for either 12 or 24VDC operation. The lock has a default factory setting of ‘power to open’ and is field changeable to ‘power to lock’.
The lock has a holding strength of 200kg, has a 1 metre connection cable, draws a measly 30mA at 12V DC, or 150mA at 24V DC, and has a 5-year warranty.
New FSH FCL10 Cabinet Lock With 200kg Holding
Mounting process has 5 simple steps:
- Set the lock to the required function mode (power to open/power to lock)
- Route the wiring through the correct hole as per the wire connection diagram, making sure that the wiring does not obstruct solenoid movement
- Secure the solenoid with the holding screws and mount the cabinet lock as required
- Check lock functionality with power connected
- Remove the adhesive protective strip on the double-sided tape attached to the solenoid and stick on the stainless-steel plate cover.
You can find out more about FSH FCL10 Electric Cabinet Lock here or read more SEN news here.
