Optex Recessed Indoor 360 PIR

Optex Recessed Indoor 360 PIR

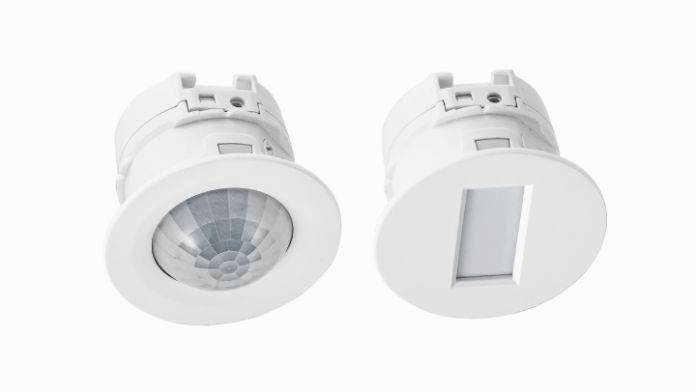

Optex recessed indoor 360 PIR – Distributed locally by DAS, Optex AP-360B/20NB is an indoor recessed 360-degree PIR that’s also available as a curtain.

The AP-360B/20NB AP-360B provides 360-degrees volumetric detection (at 4m mounting height), while the AP-20NB provides a 6m curtain area with the same sensor form factor when wall mounted in an 86-type mounting box at a height of 1.5 metres.

Features of these Optex sensors include a compact and discrete design, adjustable sensitivity, tamper, light control function (AP-360B only), and a battery saving timer with battery-powered models.

Sensitivity is 2C at 0.6 m/s, detection speed is 0.3 to 3 m/s and alarm cycle is 2-120 seconds variable. LED indicators blink on warm up (60 seconds), show solid on alarm, and show solid during walk test detection.


Alarm output is NO/NC at 28V DC at 200mA draw for wired devices, or 3.6V DC at 10mA draw for battery powered units. Tamper switch is normally closed at 28V DC with a draw of 100mA maximum and the contact opens once the casing is detached.

Power supply is 9.5 to 16V DC for powered or 2.7 to 3.6V DC for CR123a battery, with standby current draw of 13mA for powered and 4mA for battery units. Dimensions without box mount are 52 x 42.5mm, and 86 x 86 x 42.5mm with box mount, weight is 50g and operating temperature is -20 to 50C.

Contact DAS for more information about these flexible intrusion sensors from Japanese manufacturer, Optex.
