ZKTeco ProID 101 Mifare Reader

ZKTeco ProID 101 Mifare Reader From SecuSafe.

ZKTeco ProID 101 Mifare Reader – ProID 101 series reader by ZKTeco is an RFID access control reader with a water-resistant design and robust aluminium alloy casing.

The ProID 101 series reader seamlessly integrates with access control devices through RS485 or Wiegand protocols. The reader is powered by a 32-bit ARM Cortex-M0 48MHz processor, has a 3cm read range and can support 13.56MHz proximity cards.

The ProID 101 reader is rated IP65 against dust and water for covered external applications, features a tempered glass surface, LED lights and anti-disassembly alarm for added security.

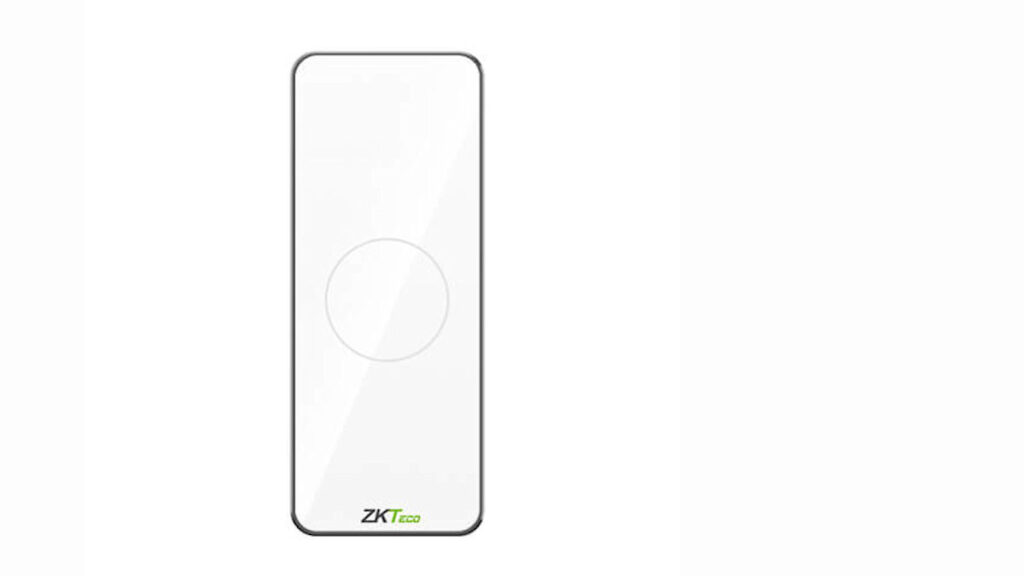

ZKTeco ProID 101 Mifare Reader 2 LR
ZKTeco ProID 101 Mifare reader.

There’s on-site adjustable Wiegand output (26 or 34 bits) and RS485 for easy installation and management, and the reader comes in 2 colours, black and white.

The reader has an operating voltage of 7-13V DC, a maximum current draw of 350mA at 5V with a standby draw of 300mA. Operating temperature is -20 to 65C and the ProID 101 from the 100 series is a compact 111 x 44.5 x 11mm.

You can find out more about ZKTeco products from SecuSafe here or read more SEN news here.

ZKTeco ProID 101 Mifare Reader Features

Aluminium Alloy case
Tempered glass surface
Output Format Wiegand 26-bit or W34-bit (Adjustable), RS485
Pulsing White Standby Light
Red and Green LEDs
Status Indicator
Operating Temperature
-20 °C ~ 65 °C
Operating Voltage DC 7 to 13V
Current Draw ≤350mA 5V
ProID104: DC 12V 1A
Current Draw ≤300mA.

“ZKTeco ProID101 Mifare Reader From SecuSafe.”

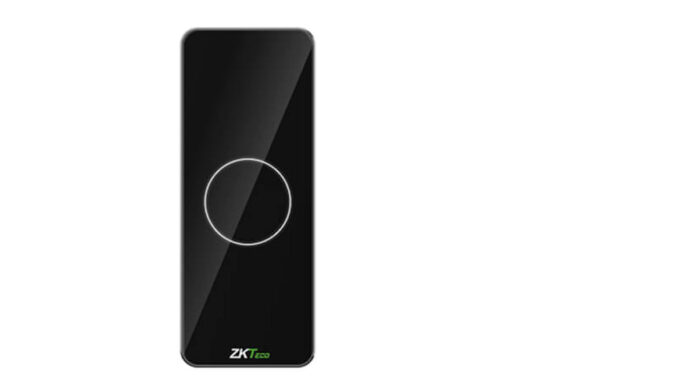

ZKTeco ProID 101 Mifare Reader 1 2
ZKTeco ProID 101 Mifare reader from SecuSafe.
