Tecom Discovery 4G TSX16000 Communications Module

Tecom Discovery 4G TSX16000 Communications Module LTE Cat 4 Cellular Communications Path For Discovery Security Systems.

Tecom Discovery 4G TSX16000 Communications Module – Tecom Discovery TSX16000 4G Communications Module is an LTE Cat 4 cellular communications path for Discovery security systems, supporting alarm reporting, remote configuration and connections to compatible Tecom management software.

Designed to install alongside a Discovery control panel, the compact module is DIN rail mounted on the TSX-DINRAIL and connects directly to the panel using a single USB-C cable carrying power and data.

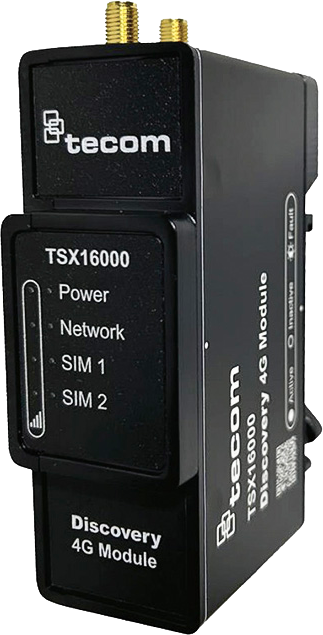

139471 Tecom Discovery 4G TSX16000 Communications Module 323x635 2

The module can operate as the primary or secondary communications path and provides an always-on, constantly polled connection, with communications sent and received immediately, subject to cellular network availability and quality.

Discovery 4G supports alarm reporting to compatible control rooms, as well as upload and download of panel configurations. Supported software includes WMS Pro 3.1, Tecom Web Management System 2.6, Tecom IP Receiver 2.6, CTPlus 3.6 and all versions of UltraSync. The module is supplied UltraSync-ready.

Hardware compatibility includes Tecom Discovery TSX-2 series control panels. Cellular connectivity is provided over LTE Cat 4, with 2 MicroSIM slots and an SMA antenna connection.

The module measures 90 x 62 x 17mm and weighs 135g. Operating current is 53mA at idle and 114mA peak, with an operating temperature range of 0-50C and relative humidity tolerance of 0-90 per cent non-condensing. Australian regulatory compliance is ACMA RCM.

There are 3 versions available with the TSX16000 supplied without SIM cards, the TSX16000-AU including Telstra and Vodafone SIM cards for Australia, while the TSX16000-NZ includes a Vodafone SIM card for Kiwi applications.

You can learn more about Aritech’s Tecom Discovery solution here or read more SEN news here.

Aritech · Tecom Discovery

Speccing Discovery for a site that needs a cellular path?

Get the full TSX16000 datasheet, the product page and the Discovery control panel it pairs with, straight from Aritech.

Discovery 4G module Datasheet (PDF) Discovery control panel

Aritech national sales enquiries: 1300 361 479 · More SEN news →

Tecom Discovery 4G Communications Module Features

Spec panel · Tecom TSX16000

A 4G path that lives on the panel’s DIN rail

1^cableUSB-C power + data

2^SIMsMicroSIM slots

One USB-C lead from the Discovery panel carries both power and data, so the module needs no separate housing or power supply — and it can run as the site’s primary or secondary path.

NetworkLTE Cat 4

SIM2× MicroSIM

AntennaSMA connector

MountingDIN rail (TSX-DINRAIL)

Size90 × 62 × 17 mm

Weight135 g

Current idle / peak53 / 114 mA

Operating0–50°C 0–90% RH

All figures as published in the Aritech TSX16000 datasheet; regulatory compliance ACMA RCM; humidity range is non-condensing. Not stated: the supply voltage the current figures are measured at (check it against your panel’s battery standby calculation), LTE bands, and whether an antenna is supplied — confirm with Aritech.

“Tecom Discovery 4G TSX16000 Communications Module LTE Cat 4 Cellular Communications Path For Discovery Security Systems.”

139471 Tecom Discovery 4G TSX16000 Communications Module 1920x1080 4 — Tecom Discovery 4G TSX16000 Communications Module 3
