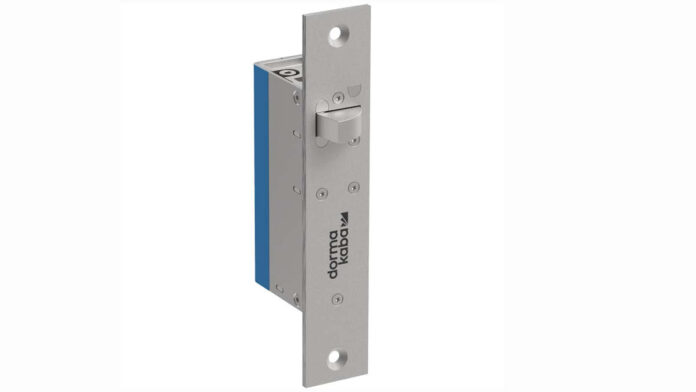

dormakaba SL30SGL Single Bolt Latch Functions With 600kg Of Sideload.
dormakaba SL30SGL Single Bolt Latch – dormakaba SL30SGL Cobalt Mini is a motor-driven single-bolt latch designed to secure single action doors.
With a small footprint, Cobalt Mini can be installed in tight locations but can still pull a door tightly against a seal and will release instantly, even with excessive side load on the door.
dormakaba SL30SGL has a holding force of 1000 kg, can correct door misalignment of 8 mm, can release instantly in the presence of 600 kg sideload, features automatic dead bolting, has a 10 mm stainless-steel bolt pin and converts from fail-safe to fail secure by repositioning a single jumper.
There’s reverse polarity and transient protection, multiple attempts to lock, door and bolt position monitors, mortise mounts horizontally or vertically on single acting doors, or surface mounts with the aid of SLA30SGL accessories, including onto glass.
Required voltage is 12-24V DC +/- 15 per cent, MTBF is 1,000,000 cycles, the lock dimensions in mm are 160L x 30W x 47D, long strike dimensions are 160L x 30W x 14D, its housing is 163L x 34W x 55D and its dress plate is 165L x 0.7W x 58D.
Current usage is 40mA @ 12V DC and 25mA @ 24V DC holding and <250mA @ 12V, <200mA @ 24V operating. You can learn more about the dormakaba SL30SGL here or read more SEN news here.
“dormakaba SL30SGL Single Bolt Latch Functions With 600kg Of Sideload.”
