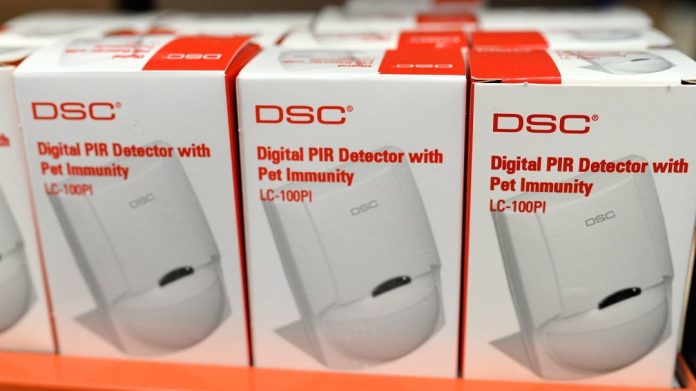

BGW Technologies DSC LC-100-PI is an internal 15-metre quad PIR detector with a detection angle of 85 degrees, pet immunity and a 2-year warranty.
This LC-100-PI (Form ‘A’ contact) and LC-120-PI (Form ‘C’ contact) detectors feature intelligent signal analysis for reliable detection, pet immunity up to 25kg, DSC’s Quad Linear imaging technology for analysis of body dimensions and differentiation from backgrounds and pets and ASIC-based electronics.
There’s adjustable variable pulse count, PIR sensitivity adjustment, height installation calibration, an optional bracket and corridor lens. Relay contacts rating (resistive load) is 100 mA/28V DC, alarm time is 2 seconds, there’s digital temperature compensation, power supply is 12V DC at 10 mA, operating temperature is -10 to 50C, weight is 60g and dimensions are 63mm x 92mm x 40 mm.
