EasyGate SPT Outdoor IP-53-Rated Speedgate

EasyGate SPT Outdoor IP-53-Rated Speedgate For External Access Control Applications.

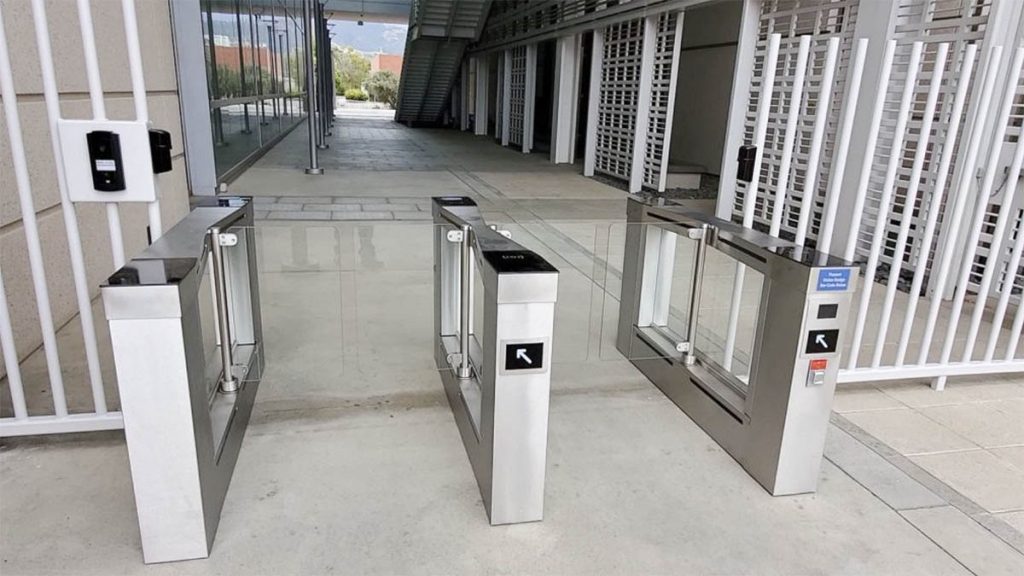

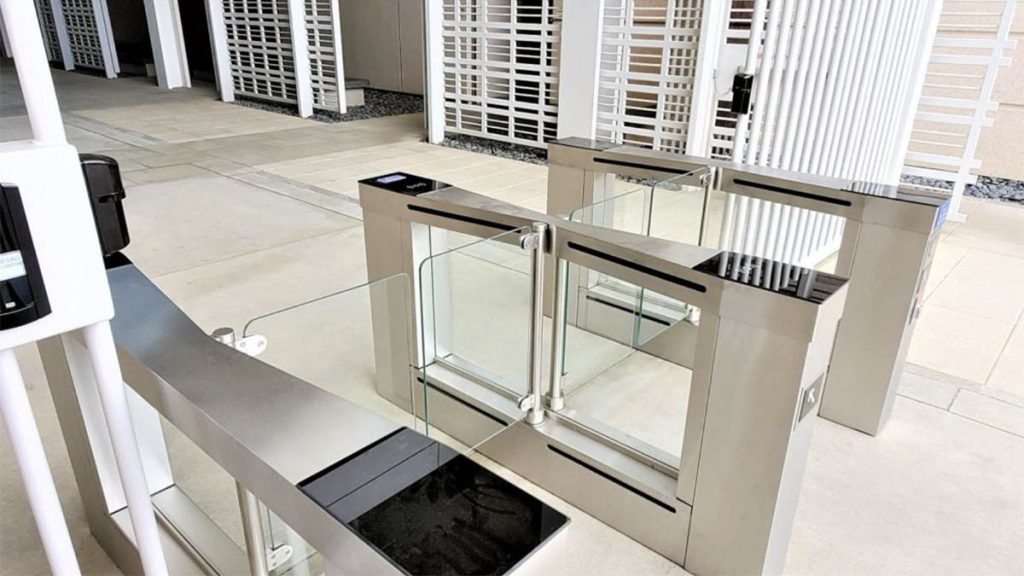

EasyGate SPT Outdoor IP-53-Rated Speedgate – EasyGate SPT Outdoor is an IP53-rated entrance control speedgate designed for exposed applications including airports, railway stations, ferry terminals and outdoor attractions requiring high throughput and access control.

The system combines bi-directional glass barriers with optical detection and an MDD motor designed for fast, quiet operation. Users present a valid credential, and the barriers swing away to provide hands-free passage before closing behind the authorised person.

Multiple infrared sensors provide tailgate detection and monitor users passing through the lane, while safety sensors prevent the barriers closing while a person remains within the passage. Barrier heights can be specified between 1000mm to 1800mm to provide different levels of protection against attempts to jump the gate.

IP53Ingress rating

180^mmPedestal width

1.0–1.8^mBarrier height

IP53decodes under IEC 60529 as dust-protected (first digit 5) and protected against spraying water up to 60° from vertical (second digit 3) — sheltered-outdoor weather, not immersion or pressure-washing. Standards reading by SEN; the vendor states the rating only.

Barrier

Bi-directional glass, hands-free

Drive

MDD motor, fast and quiet

Detection

Multiple IR sensors, tailgate

Emergency

Fire-alarm release, auto-open

Sources. Rating, pedestal width, barrier height range and feature set as published by Entrance Control (AU/NZ). IP-code meaning is taken from IEC 60529 and is SEN’s reading, not a vendor statement. Throughput rate, lane width, operating temperature range and applicable safety standard are not stated in the release — confirm with the vendor.

The EasyGate SPT Outdoor pedestal is 180mm wide and is designed to meet IP53 requirements for installation in exposed environments. Finishes can be customised, while logos can be sandblasted onto the glass panels.

Importantly for security applications, EasyGate SPT Outdoor can integrate with an existing access control system, while alarm outputs can be used to trigger CCTV, lock doors, control elevators or activate other third-party security devices following a security event.

EasyGate SPT Outdoor IP-53-Rated Speedgate 3

These rugged speedgates can also integrate with a fire alarm system, allowing barriers to open automatically during an emergency. IP connectivity and remote diagnostics support remote fault identification and maintenance.

Options include an automatic card return system, integrated elevator destination display and colour-coded indicator lights to guide users through the gate.

You can learn more about EasyGate SPT Outdoor speedgates here or read more SEN news here.

Specifying an outdoor lane?

Get the EasyGate SPT Outdoor detail direct from the vendor

Barrier height, finishes, glass branding and the integration options are configured per site. Entrance Control supplies EasyGate across Australia and New Zealand — the product page is the place to start.

EasyGate SPT Outdoor product page Entrance Control AU & NZ More access control on SEN

Vendor links open in a new tab

EasyGate SPT Outdoor Features:

Feature set

EasyGate SPT Outdoor at a glance

Construction & finish

IP53-rated construction for exposed installs
180mm-wide pedestal
Glass barriers 1000–1800mm high, specified to suit the jump-over risk
Custom finishes; logos sandblasted onto the glass

Detection & safety

Bi-directional, hands-free operation
MDD motor for fast, quiet barrier movement
Multiple infrared sensors for optical and tailgate detection
Safety sensors prevent closure with a user in the lane

Integration & outputs

Integrates with an existing access control system
Alarm outputs to CCTV, door locks, lifts and third-party devices
Fire-alarm integration for emergency opening
IP connectivity and remote diagnostics for remote fault-finding

Options

Automatic card return system
Integrated lift destination display
Colour-coded indicator lights to guide users through the gate

Not stated in the release: throughput (persons per minute), lane width, operating temperature range, power and comms requirements, safety-standard compliance, and whether IP53 applies to the pedestal only or the full assembly. Confirm with the vendor before specifying.
