New FSH FEM5400WM Weather Resistant Maglock For High Security External Applications.

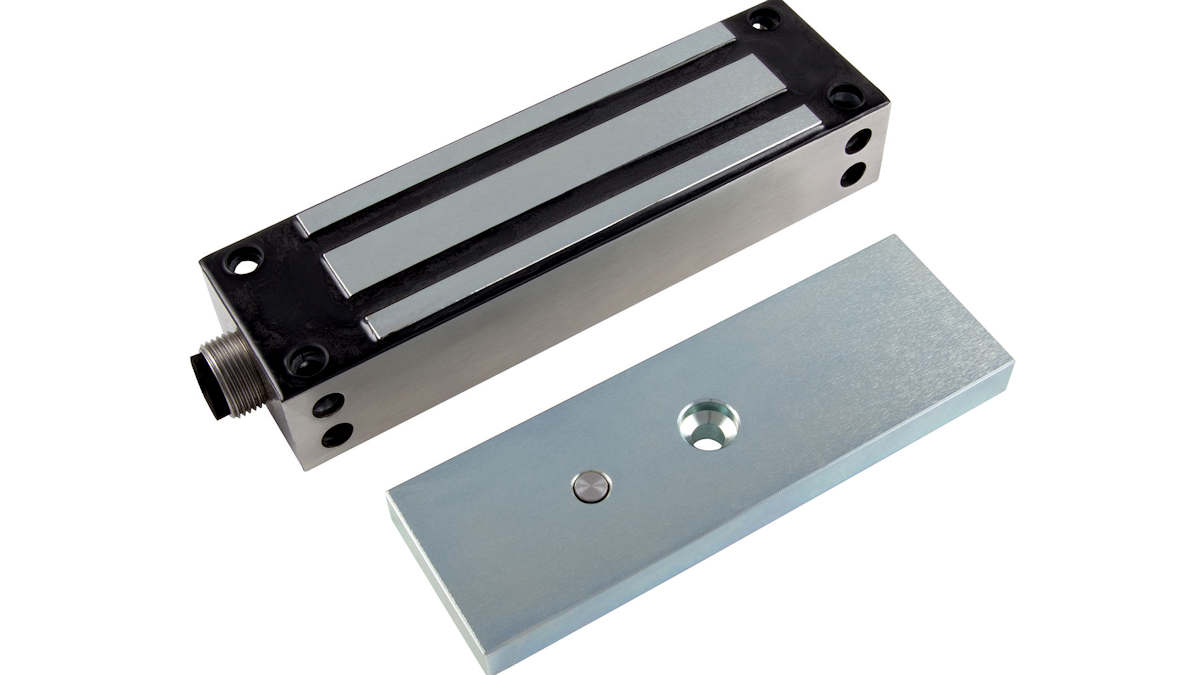

New FSH FEM5400WM Weather Resistant Maglock – Allegion’s FSH FEM5400WM is a weather-resistant electromagnetic lock designed for high-security external applications, offering a holding force tested up to 570kg. Engineered to perform in challenging environments, the FEM5400WM carries an IP68 rating and is suitable for gates or external doors exposed to rain and wind.
The unit supports dual voltage operation at 12 or 24V DC and draws 500mA at 12V or 250mA at 24V. A lock status sensor with reed switch monitoring provides feedback to connected systems.
Constructed with a stainless-steel housing and tested to Australian and New Zealand standards, the lock is designed to withstand demanding conditions while ensuring reliability in challenging external applications.
The FEM5400WM design eliminates residual magnetism, extending the life of lock and door hardware, and improving the end-user experience. It integrates with a wide range of access control systems and can be triggered by a wide range of reader and credential technologies.

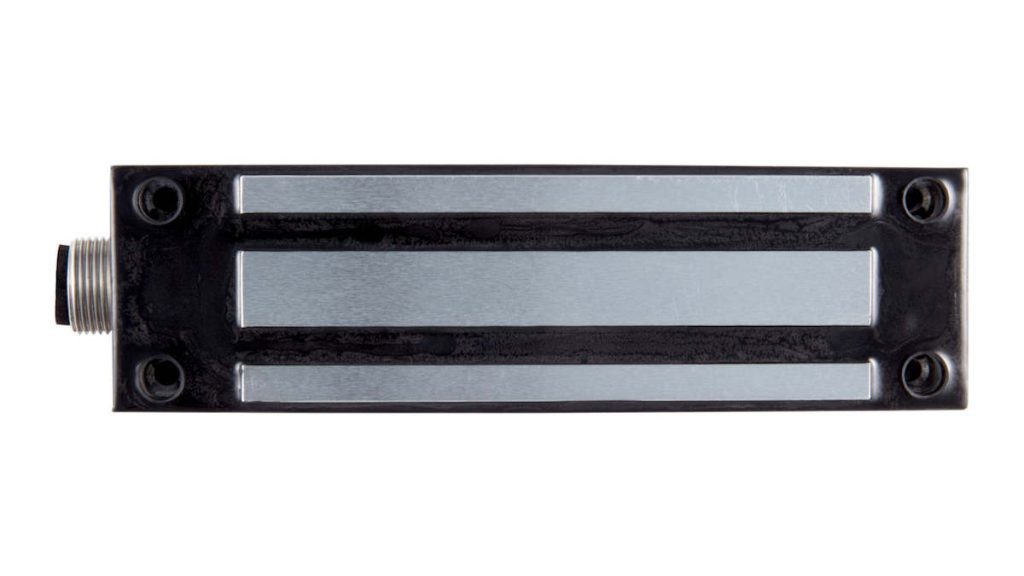

Supplied with a 1 metre connection cable, the magnet measures 220mm x 63.5mm x 41mm, while the armature is 185mm x 60.8mm x 16mm. Optional accessories include L and Z brackets and a U bracket for glass doors.
You can learn more about FSH electro-magnetic locks here or read more SEN news here.
New FSH FEM5400WM Weather Resistant Maglock Features
- Weather resistant, IP68-rated
- Tested to 570kg holding force
- Dual voltage: 12/24V DC
- No residual magnetism
- Lock status monitoring via reed switch
- Stainless steel housing
- 5-year mechanical and electronic warranty.
