New Takex VS-1000E Vape And Smoking Sensor Available From CSD.
New Takex VS-1000E Vape And Smoking Sensor – Takex has released the VS-1000E vape and smoking detector, a purpose-built sensor designed to address vaping and smoking in schools, restrooms, and similar environments.
The VS-1000E combines high-sensitivity particle sensing with intelligent processing to reduce false alarms and simplify deployment. It features a local solid-state relay output (selectable NC/NO) and is designed to integrate with conventional security systems without requiring apps or licensing. The unit provides configurable sounder and LED notification and supports both real-time and pulse output modes, allowing tailored responses to detected activity.

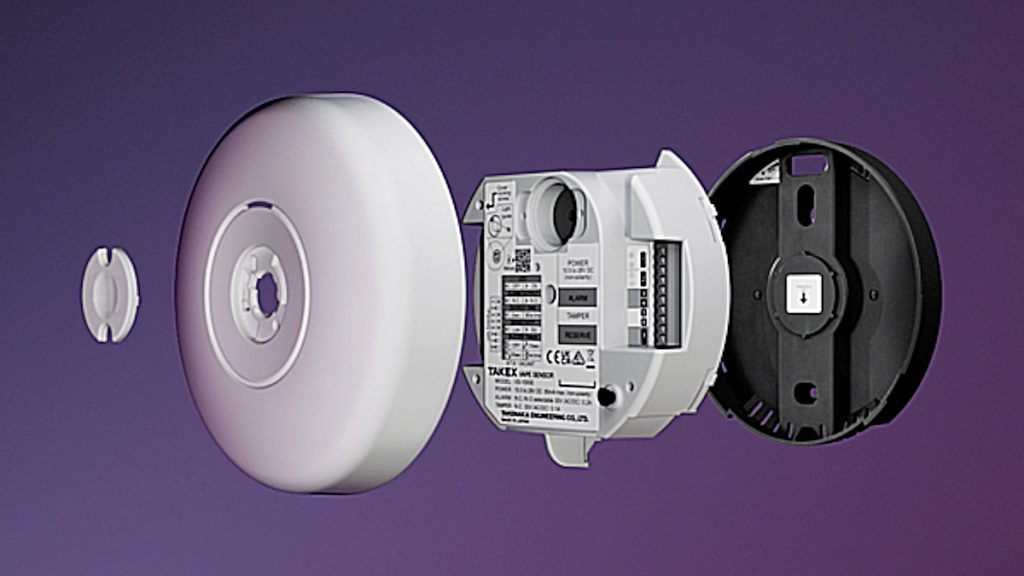

Engineered for fast installation, the VS-1000E includes screwless terminals, twist-lock base mounting, and tamper-resistant housing. It also includes built-in self-diagnostics that trigger alerts in the event of voltage or module faults. The unit supports both ceiling and wall mounting and operates on 10.5–28V DC with a current draw of 85mA. Operating temperature is rated from 0C to +50C.
The VS-1000E supports site-wide integration through dry-contact relay outputs, dedicated terminal interconnection, and selectable LED and buzzer functionality.
You can contact CSD here to learn more or read more SEN news here.
New Takex VS-1000E Vape And Smoking Sensor Features
- High-sensitivity vape and smoke detection
- Adjustable standard/low sensitivity settings
- Solid-state and dry contact relay outputs (NC/NO selectable)
- Real-time or pulse alarm output (approx. 2 sec)
- Built-in buzzer and LED notification
- Tamper alarm and secure cover locking
- Twist-lock ceiling or wall mount
- Self-diagnosis and voltage fault indication
- 10.5–28V DC power input, 85mA max.
“New Takex VS-1000E Vape And Smoking Sensor Available From CSD.”
