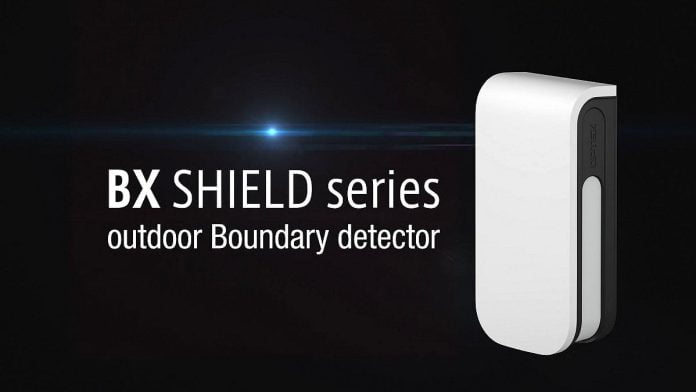

Optex BX Shield Outdoor Curtain PIR

Optex BX Shield Outdoor Curtain PIR From BGW Technologies.

Optex BX Shield Outdoor Curtain PIR From BGW Technologies.

Optex BX Shield Outdoor Curtain PIR – Optex BX Shield is a series of curtain outdoor motion sensors in wired and hardwired versions with up to 12m detection range on each side.

BXS is designed to detect people in the immediate boundary of home or office building. The outdoor detectors feature 4 PIRs, 2 on each side. The left and right detection area can be set up completely independently from each other.

The BXS-ST model is wired, BXS-AM is wired IR anti-mask, BXS-R is battery wireless, BXS-RAM is battery wireless with IR anti-masking, BXS-AM is the hardwired bi-colour model with anti-masking.

The outdoor motion sensor’s detection range, sensibility and alarm output can be set independently on the left and the right. The detection distance can easily be set at 2.5m, 3.5m, 6m, 8.5m to 12m on each side, and the sensitivity can be set from low to extremely high, detecting only 1-degree Celsius temperature difference.

The Optex BX Shield curtain sensor has been designed with the installer in mind. A 90-degree unlocking system allows easy access to the settings area, a spirit level help fixing the sensor straight. A black and silver face covers are available as option making the look of the outdoor curtain sensor easy to blend with its environment.

Optex BXS Outdoor Curtain 1.png 2 1.png 3 1
Optex BX Shield Outdoor Curtain PIR wireless option.

On each side, the BX Shield motion sensor features 2 passive infrared beams one pointing towards the floor and one pointing away from the sensor, both beams need to trigger to confirm the detection: this system allows to ignore small to middle size dog animals and detect people only.

Optex BX Shield Outdoor Curtain PIR can be easily connected to a fixed dome CCTV camera to send visual alarm when people are entering in the immediate boundary of the premises. SMDA (Super Multi Dimension Analysis) logic analyses detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes and vegetation sway and distinguish between the cause of nuisance false alarms and genuine intrusions.

Contact BGW Technologies here for more information – more news from SEN here.

Optex BX Shield Outdoor Curtain PIR Features

  • Hardwired curtain PIR up to 12m per side with anti-masking
  • Versatile and easy-to-install design
  • Not affected by environment or small animals
  • Trouble output when face cover, chassis, back box removed.
  • Individual detection area and sensitivity setting per side
  • Side adjustable to 5 ranges 2.5m, 3.5m, 6m, 8.5m and 12m.
  • Extreme high detection mode
  • SMDA logic for advanced temperature compensation
  • Individual signal outputs (right/left)
  • Double conductive shielding against bright light disturbance
  • Back tamper
  • Automatic walk test mode.
