Southwest Microwave Dual Technology Sensors

Southwest Microwave Dual Technology Sensors

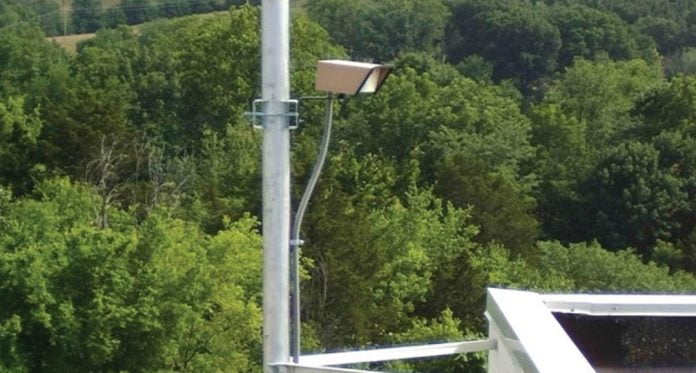

Southwest Microwave Dual Technology Sensors – MS15 and MS16 outdoor, dual technology motion sensors from Southwest Microwave are distributed locally by Perimeter Systems Australia.

These sensors combine of Doppler Microwave and Passive Infrared technology to provide volumetric protection for a variety of exterior applications. With a 15m x 12m detection pattern, MS15 and MS16 sensors are designed for reliable detection of upright/walking and running targets. The MS16 high security motion sensor offers enhanced detection capability for crawling targets.

MS15 and MS16 Motion Sensors are configured for ‘And Gate’ operation; both technology elements must activate simultaneously for the sensor to alarm. The microwave portion must detect motion of an intruder, while the passive infrared portion must detect infrared radiation emitted by an intruder. When both technologies activate at once, the sensor initiates an alarm condition.

The sensors feature 2 microwave receiving channels with the ability to eliminate vibration and periodically moving objects as sources of false alarms. A dual element infrared detector ignores normal temperature variations yet is highly responsive to rapid infrared changes created by an intruder. Proprietary integrated circuit design provides enhanced digital signal processing (DSP) for both microwave and passive infrared technologies.

For optimum performance, it is recommended to use the MS15 and MS16 motion sensors to protect specific assets or strategic areas, or as a gap filler in conjunction with an outdoor perimeter detection system, such as Southwest Microwave’s INTREPID fence or buried cable detection systems, microwave links or transceivers. In general, these sensors are not used as the primary detection tool along a perimeter fence line other than as part of a proprietary system with on-site response or video verification.

Detection area is 15 metres x 12 metres, input voltage is 10.5 to 20V DC, current consumption is 175mA ±20 @ 12V DC, alarm output/ tamper is SPDT-Form C and there’s a relay contact rating is 0.1A @ 50V DC, operating temperature -34C to 65C, dimensions 235mm long x 152mm wide x 108mm high and weight is 4.54kg.

Key product features include:

* Digital sensitivity and range control
* Balanced temperature compensation
* Enhanced bird, small animal immunity control (MS15 only)
* Tamperproof design rugged,
* Weatherproof housing protects against RFI and EMI interference
* Master and analytic LED indicators walk-test sounder included.
