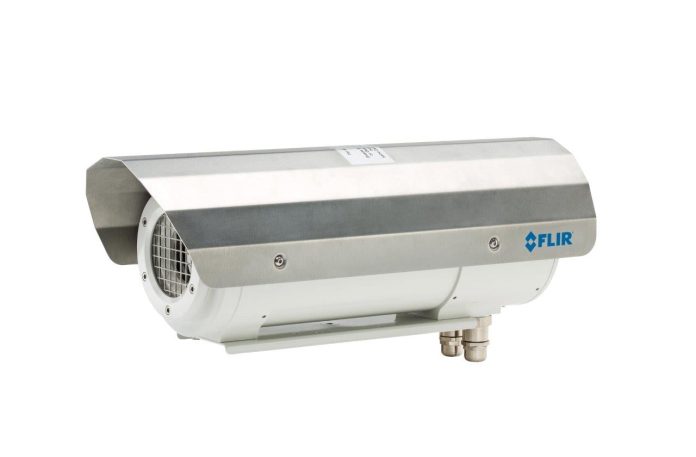

FLIR A310 ex is an ATEX compliant solution, with a thermal imaging camera mounted in an enclosure, making it possible to monitor critical and other valuable assets also in explosive atmospheres.
Process monitoring, quality control and fire detection in potentially explosive locations are typical applications for the A310 ex. FLIR's A310 ex is ATEX certified (Verification Certificate ZELM 12 ATEX 0485 X) and can be installed in classification zones 1, 2, 21 and 22.
The certification comprises the whole system which includes the enclosure as well as all components inside, such as the thermal imaging camera, heater and integrated controller. The flame-proof enclosure “d” prevents any explosion transmission from the inside of the enclosure to the outside.
The camera automatically sends analysis results, IR images and more as an e-mail on schedule or at alarm, acting as an FTP- or SMTP-client. MPEG-4 streamed video output over Ethernet shows live images on a PC, 640×480 with overlay up to 30 Hz, system dependent. With a thermal sensitivity of <50 mK the FLIR A310 captures the finest image details and temperature difference information.
Distributor: FLIR Systems
Contact: 61 3 9550 2800
