Uniview 180-Degree Camera

Uniview 180-Degree Camera Released.

Uniview 180-Degree Camera Released.

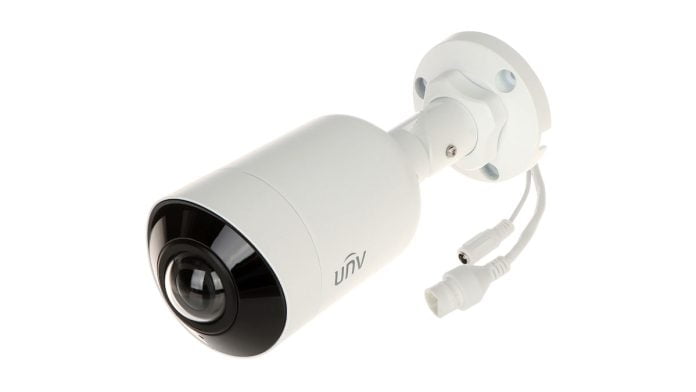

Uniview 180-Degree Bullet – Uniview has released the IPC2105SB-ADF16KM-I0 180-degree bullet camera, a 5MP camera offering a very wide angle of view, along with smart intrusion prevention features.

The camera’s lens is a snub 1.68mm in length with an aperture of F2.0, allowing a monster angle of view, and perimeter protection functions like line crossing, enter/leave and area detection make for flexible operation. The vertical angle of view is no slouch either – it’s 100 degrees.

The IPC2105SB-ADF16KM-I0 delivers 5MP across 180 degrees at 30ips from a ½.7-inch CMOS progressive scan sensor. Features include 120dB WDR, Ultra H.265,H.265, H.264 and MJPEG, along with ONVIF conformance.

There’s human body detection, 9 de-warping settings, privacy masking of 4 areas, region of interest of 8 areas, flip options including normal, vertical and horizontal.

Uniview 180 Degree Camera 1 LR
Uniview 180-degree camera released.

It can operate based on target classification, with smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights, allowing it to more accurately focus on humans, motor vehicle and non-motorised vehicles, like bicycles.

The camera has UNV Smart IR in the 850nm range, which provides assisted viewing out to 20 metres. The manufacturer’s DORI numbers are observe at 37.8m, recognise at 15 metres, recognise at 7.6 metres and identify at just under 4 metres.

There are SIP functions, a built-in microphone, support for microSD, IP67 ratings against dust and water, an operating temperature range of -30 to 60C and 12V DC and PoE power options. Surge protection is 4KV.

This is a compact camera with dimensions of 198mm long x 71mm wide x 71mm deep, and weight is only 420g, which is slight for a camera with a cast alloy housing and integrated mount.

You can find out more about the Uniview 180-degree camera here or read more SEN news here.

Uniview 180-Degree Camera Features:

  • 5MP@30FPS, 4MP@30FPS
  • 5MP 1/2.7-inch CMOS Sensor
  • Supports Human Body Detection
  • De-warping Modes
  • 120dB true WDR
  • SIP Functions
  • Built In Microphone
  • Built In MicroSD Card Slot
  • Ultra H.265,H.265, H.264, MJPEG
  • ONVIF Conformance
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • IP67 Weatherproof
  • 12VDC/PoE.

“Uniview 180-Degree Camera Released.”

Uniview 180 Degree Camera 3 LR
Uniview 180-degree camera.
