New Dahua Smart Control Panel

New Dahua Smart Control Panel Puts Alarm, Intercom and Cameras on One Screen.

New Dahua Smart Control Panel – Residential security systems have a complexity problem. Not on the back end – the hardware side is well understood.

The issue is on the front end, where the client has to live with whatever the installer has left them. A separate alarm keypad, a video intercom monitor and a mobile app on the phone – that’s 3 different interfaces, 3 different things that can confuse a client at 11pm when something triggers.

In contrast, Dahua Smart Control Panel series is built around a single wall-mounted unit that powers everything. Alarm arming, camera preview, intercom calls, environmental monitoring all in a single touchscreen.

The Hardware Stack

The range runs 2 screen sizes: 7-inch IPS at 1024 x 600 and 10.1-inch IPS at 1280 x 800. Both mount surface or flush. That matters on tiled or rendered walls, where cutting in is a real cost.

Models split across 2 intercom wiring types: 2-wire IP for new installations and 4-wire hybrid for retrofitting into existing intercom cabling. Worth knowing before you spec it, because the model suffix tells you which is which, and getting it wrong means a return trip.

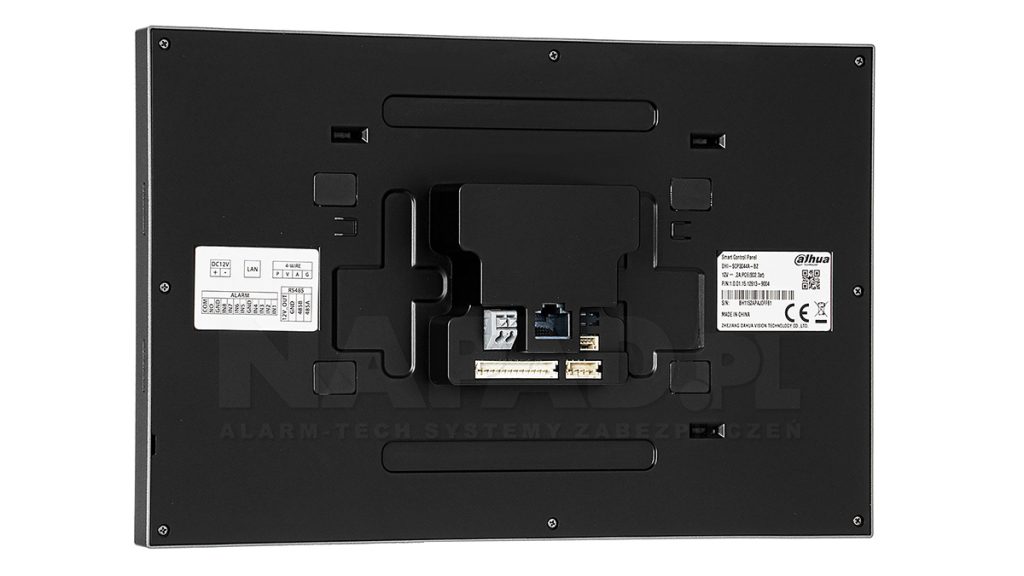

The 10.1-inch SCP3044A-BZ supports dual-band Wi-Fi 6 at 2.4 GHz and 5 GHz, along with Bluetooth 5. The 7-inch models vary. Some carry the full wireless stack, others ship with 2.4GHz Wi-Fi only. Check the spec sheet for the specific SKU before you order. The panel also carries a PoE IP port and RS-485.

Selected 7-inch models include a 2MP CMOS camera and the SCP3022B-IBZ and SCP3022B-IBZ-S feature a built-in induction loop, which is the variant to specify for DDA compliance in public reception areas or aged care.

136992 New Dahua Smart Control 1920x1080 2
New Dahua Smart Control Panel 4

Intercom Integration

The video intercom function runs picture-in-picture on an incoming call: the door station feed in the main frame and a second camera in the corner, so you can see who is at the gate while watching the door. The client answers, unlocks, and the event logs to the SD card automatically.

Typically, with a residential or small commercial site where the client currently has a separate intercom monitor and a separate alarm keypad – this panel cuts 2 devices to 1. That is not a minor convenience. You are not selling a control panel but the removal of complexity from a wall the client looks at every morning.

Alarm Integration

The panel talks to Dahua’s complete wireless sensor range. Arming, disarming, zone status and alarm events appear on the same dashboard as the camera feeds, so the client does not have to switch between a keypad and a phone app to check whether the back sensor is armed.

Single-hub suits most residential installs. Multi-hub covers multi-storey sites, with one panel per floor, each displaying the full system status. Either way, the client reads the same screen they use for intercom and cameras. That removes the main reason clients ring after handover to ask how something works.

DMSS and the Display Layer

DMSS comes pre-installed on Android 14. The client opens an app and gets a multi-pane camera preview (4, 9 or 16 channels), PTZ control, alarm arming and disarming, and event history. The home screen runs a widget dashboard with editable icons and a configurable layout.

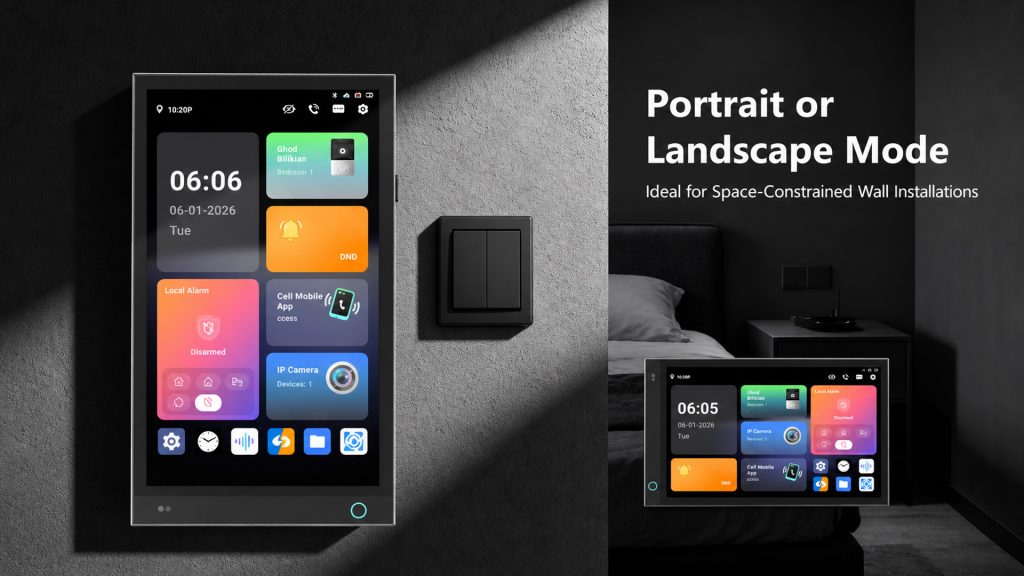

Portrait or landscape orientation is selectable, and that is worth more than it sounds. Fitting a panel into a narrow return wall between a door frame and a corner is a real problem in renovations. Portrait mode on a 7-inch screen changes what is physically possible on those jobs.

Proximity sensing wakes the screen when someone walks up. Screen brightness adapts to ambient light. The status indicator runs on the side of the unit without requiring the display to be on. The client can see a live system without touching anything.

New Dahua Smart Control Panel
New Dahua Smart Control Panel 5

The 10.1-Inch Panel

The 10.1-inch SCP3044A-BZ is the one worth leading with when talking to a builder or project manager. At 18.6mm off the wall in surface mount, it sits flush enough to look considered rather than retrofitted, which is what you want when it comes to getting approvals from interior designers on prestige builds.

Meanwhile, the Red Dot 2025 design award matters on projects where the client’s architect has opinions about what goes on the wall, making it a useful data point.

Every time the client walks past this panel, they see a clean piece of hardware that powers their alarm, cameras and front door from a single spot on the wall. That means it’s not a commodity install – it’s a potential conversation starter with the neighbour who asks who did the work.

Having the DMSS pre-installed, and a single-screen handover means the client walk-through takes minutes rather than requiring a separate session for each system. There’s no driving back to the site to push a firmware update.

You can learn more about the Dahua Smart Control Panel series here or read more SEN news here.

“New Dahua Smart Control Panel Puts Alarm, Intercom and Cameras on One Screen.”

New Dahua Smart Control Panel
New Dahua Smart Control Panel 6
”
